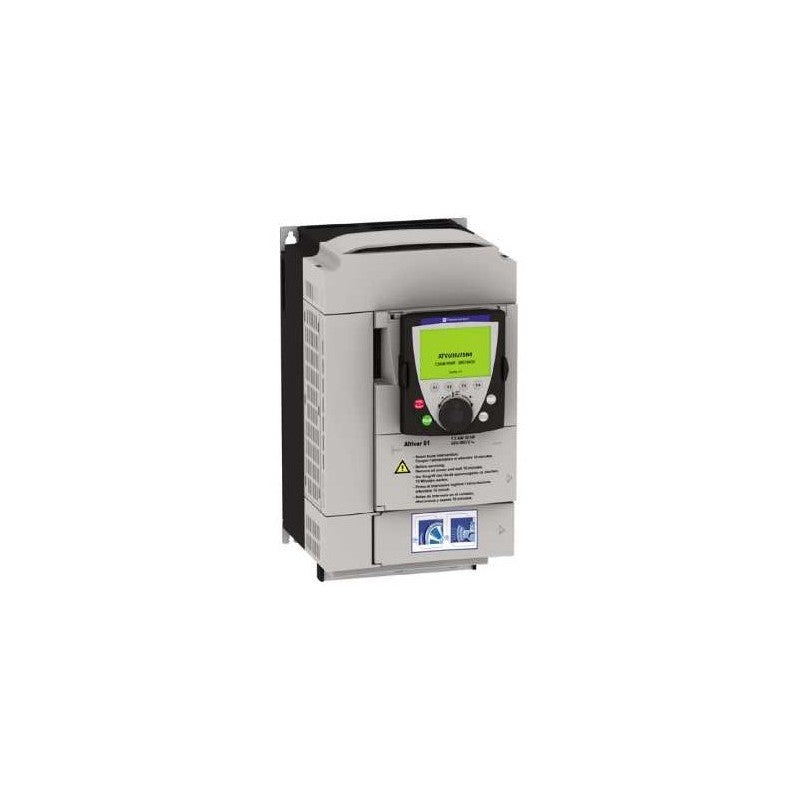

Part of the Schneider Electric Altivar 61 series, the ATV61HD11M3XZ variable speed drive is engineered for demanding industrial applications requiring precise motor control. This drive is designed to operate with motors rated up to 11kW (15hp) and is suitable for systems utilizing 200 to 240V power supplies. Its robust construction and specific design make it a reliable component for various automation tasks.

Technical details

• Series: Altivar 61
• Model Designation: ATV61HD11M3XZ
• Motor Power Rating: 11 kW (15 hp)
• Input Voltage Range: 200...240V AC
• Enclosure Type: IP20 (Open chassis, requires panel mounting)
• Control Method: Vector control with sensorless flux vector control, V/f control
• Frequency Output: 0.1 to 500 Hz
• Protection Features: Overload, short circuit, overvoltage, undervoltage, phase loss, thermal protection

Applications & compatibility

The Altivar 61HD11M3XZ drive is commonly deployed in applications such as pump and fan control, material handling systems, and general machinery where variable speed operation is essential. It is compatible with a wide range of three-phase asynchronous motors and can be integrated into various control architectures, including those utilizing Modbus RTU communication.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV61HD11M3XZ or contact our technical team for cross-reference assistance with compatible Altivar 61 components.
