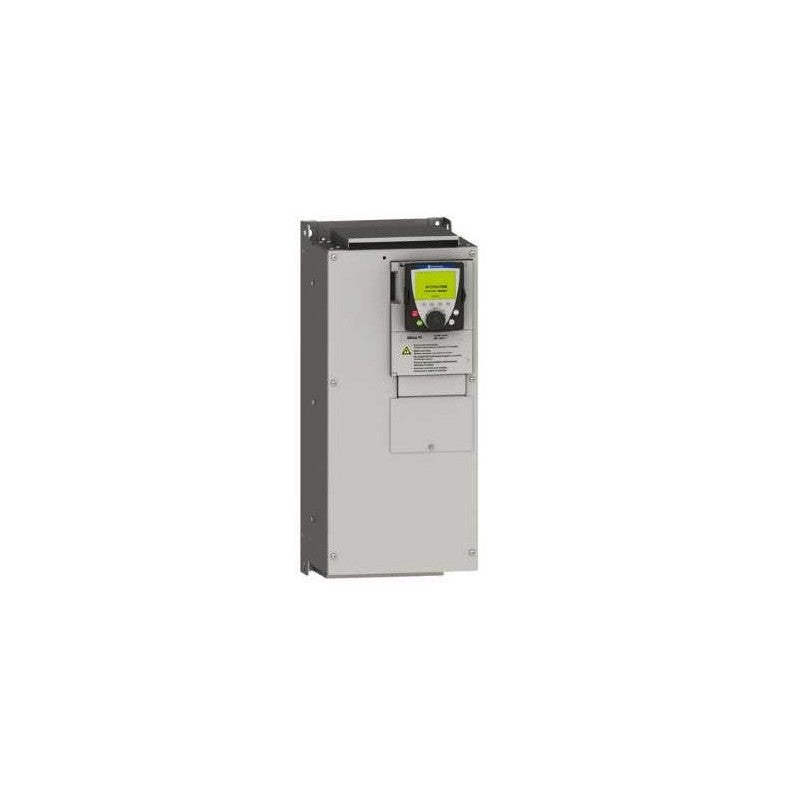

The Schneider Electric Altivar 61HD18N4Z is a variable speed drive designed for demanding industrial applications. This unit is part of the robust Altivar 61 series, engineered to provide precise motor control and energy savings. With a substantial power rating and a wide voltage input range, it is suitable for integration into various machine control systems.

Technical details

• Series: Altivar 61
• Model Designation: ATV61HD18N4Z
• Power Rating: 18.5 kW (25 hp)
• Input Voltage Range: 380...480V AC
• Enclosure Type: IP20 (Open chassis, requires panel mounting)
• Control Method: Vector control with sensorless flux vector control, V/f control
• Switching Frequency: Configurable up to 16 kHz
• Operating Temperature: -10°C to 50°C (derating may apply above 40°C)

Applications & compatibility

This variable speed drive is commonly employed in applications requiring precise speed and torque regulation for AC induction motors. It is well-suited for use in pump and fan control, material handling systems, packaging machinery, and general industrial automation where variable speed operation is critical for process optimization and energy efficiency.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV61HD18N4Z or contact our technical team for cross-reference assistance with compatible Altivar 61 components.
