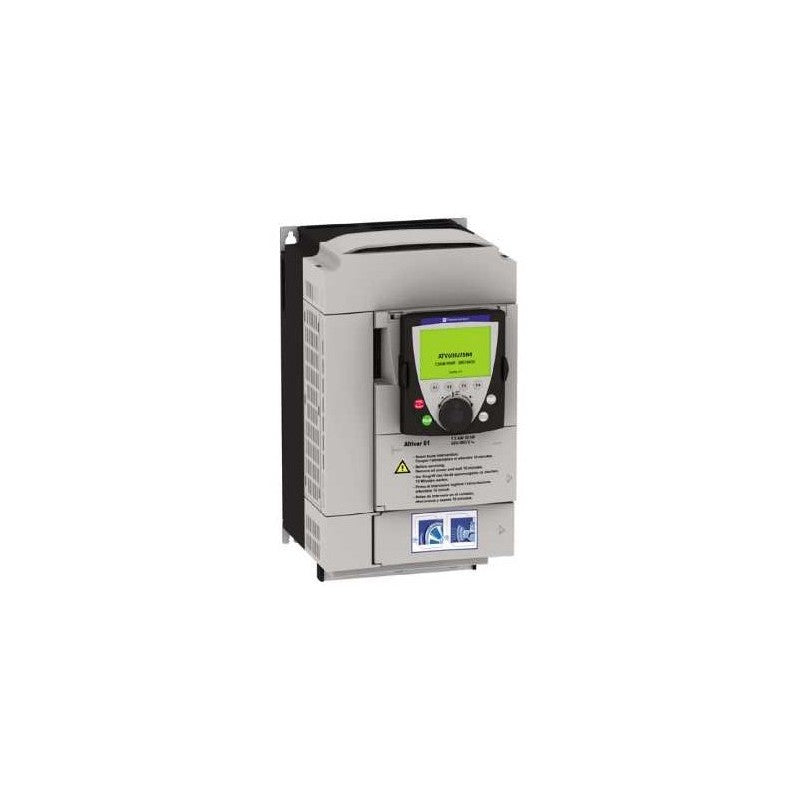

The Schneider Electric Altivar 61 (ATV61) variable speed drive is engineered for demanding motor control applications. This specific unit, the ATV61HD22M3XZ, is rated for 22kW (30hp) and operates within a 200-240V power range. It is designed for integration into systems requiring precise speed regulation and energy efficiency, commonly found in pump and fan control scenarios.

Technical details

• Series: Altivar 61 (ATV61)
• Power Rating: 22 kW (30 hp)
• Input Voltage Range: 200 - 240 VAC
• Enclosure Type: IP20 (Open chassis, requires panel mounting)
• Frame Size: HD2 (Decode from part number - typically indicates physical dimensions and mounting configuration)
• Control Method: Vector control with sensor, Voltage/Frequency control
• Harmonic Distortion: Integrated harmonic filter (Decode from part number - M3XZ often indicates specific filter options)
• Communication Options: Supports various fieldbus protocols; verify specific options against manufacturer datasheet.

Applications & compatibility

This Altivar 61 drive is well-suited for variable torque applications such as centrifugal pumps, fans, and compressors. It is commonly deployed in building automation, water management systems, and industrial process control where precise speed adjustment is critical for optimizing performance and reducing energy consumption.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV61HD22M3XZ or contact our technical team for cross-reference assistance with compatible Altivar 61 components.
