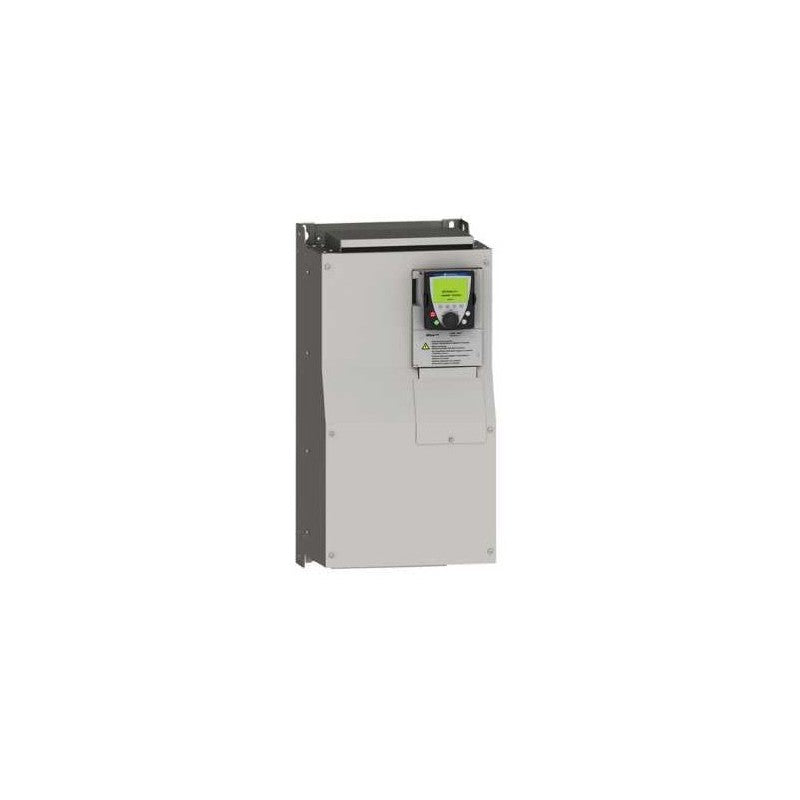

The Schneider Electric Altivar 61 (ATV61) variable speed drive is engineered for demanding industrial applications requiring precise motor control. This specific unit, the ATV61HD45N4Z, is designed for 3-phase asynchronous motors and offers robust performance within the Altivar 61 series. It is commonly integrated into systems such as pump and fan control, material handling, and general machinery.

Technical details

• Series: Altivar 61 (ATV61)
• Motor Power Rating: 45 kW (60 HP)
• Input Voltage Range: 380...480V AC, 3-phase
• Enclosure Type: IP20 (Open chassis, requires panel mounting)
• Nominal Output Current: 93 A at 380V
• Control Method: Vector control with flux vector, voltage/frequency control
• Harmonic Filter: Integrated (indicated by 'HD' in part number)
• Communication Options: Supports various fieldbus protocols; verify specific options against manufacturer datasheet.

Applications & compatibility

This Altivar 61 drive is suitable for a wide range of variable torque applications, including HVAC systems, water management, and industrial process control. Its robust design makes it a reliable choice for environments such as water treatment plants, manufacturing facilities, and commercial buildings. Compatibility with standard asynchronous motors ensures straightforward integration into existing infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV61HD45N4Z or contact our technical team for cross-reference assistance with compatible Altivar 61 components.
