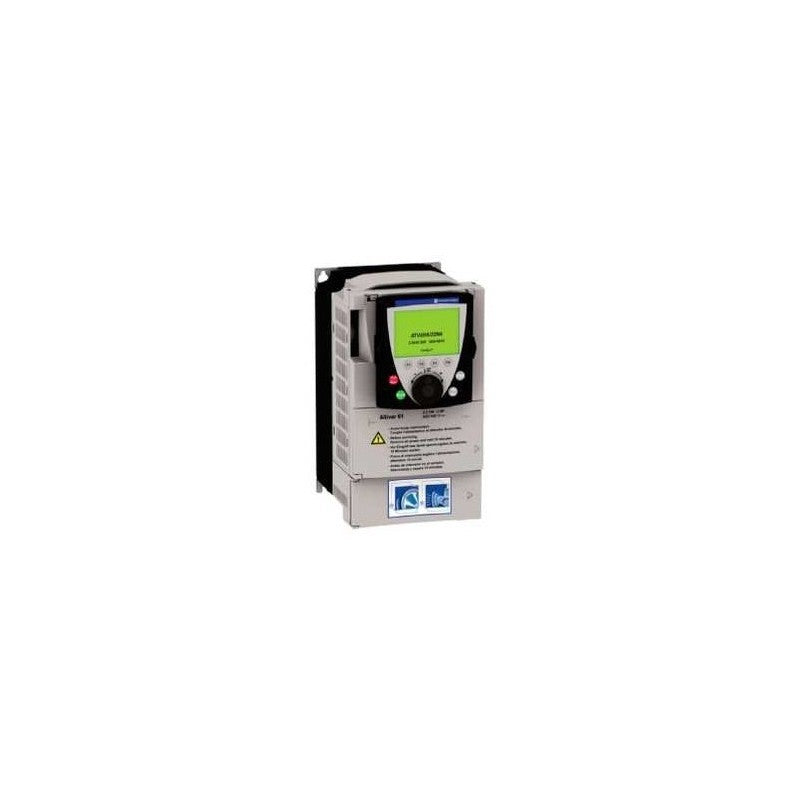

The Schneider Electric Altivar 61 series variable speed drive (VSD) is engineered for precise motor control in demanding industrial environments. This unit, designated by the part number ATV61HU22N4Z, delivers a 2.2kW (3hp) power output and operates within a 380 to 480V voltage range. It is commonly integrated into applications requiring variable speed operation for AC induction motors, such as pump and fan control systems.

Technical details

• Series: Altivar 61
• Power Rating: 2.2 kW (3 hp)
• Input Voltage Range: 380 - 480V AC
• Enclosure Type: IP20 (Open chassis, requires panel mounting)
• Control Method: Vector control, V/f control
• Overload Capacity: 150% for 60 seconds
• Switching Frequency: Configurable up to 16 kHz
• Integrated Communication Options: Modbus RTU, CANopen (additional options may be available, consult datasheet)

Applications & compatibility

This Altivar 61 drive is suitable for a wide range of applications including HVAC systems, water management, material handling, and general machinery. Its robust design and flexible control options make it compatible with various motor types and control schemes, ensuring seamless integration into existing automation architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV61HU22N4Z or contact our technical team for cross-reference assistance with compatible Altivar 61 components.
