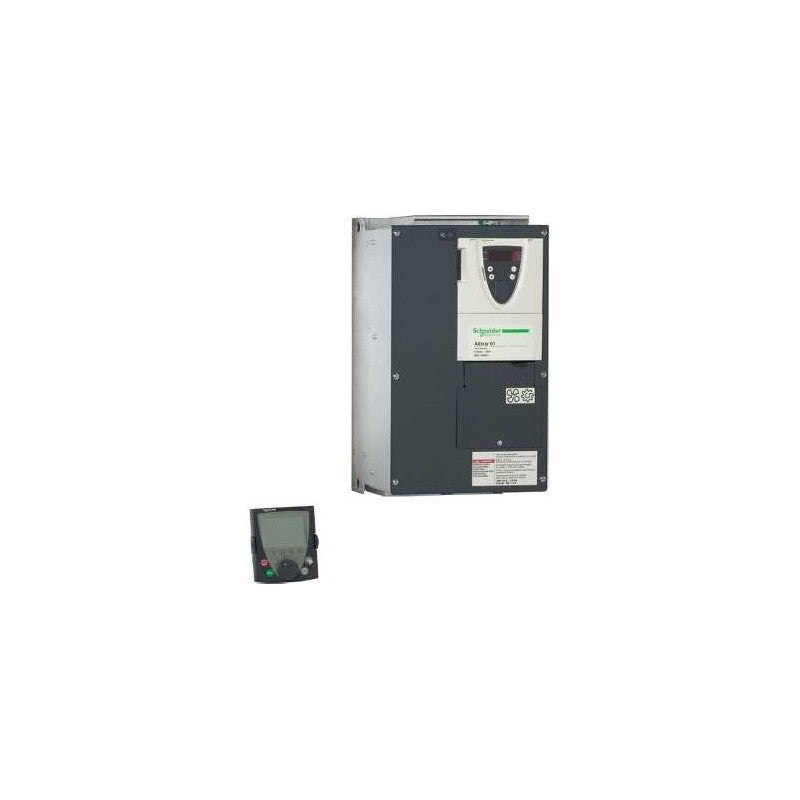

Schneider Electric's Altivar 61 series variable speed drive, model ATV61HU55Y, is engineered for precise motor control in demanding industrial environments. This unit is designed to operate with 5.5kW or 5hp motors, supporting a 690V or 575V power supply respectively. The Altivar 61 series is recognized for its robust performance in applications requiring variable speed operation of asynchronous motors.

Technical details

• Series: Altivar 61
• Power Rating: 5.5 kW (7.5 hp)
• Voltage Class: 690V (3-phase) / 575V (3-phase)
• Enclosure Type: IP20 (Open chassis)
• Control Method: Vector control, Scalar control
• Integrated Communication Options: Modbus RTU, CANopen (verify specific module for other protocols)
• Overload Capacity: 150% for 60 seconds, 120% for 300 seconds
• Switching Frequency: 2 kHz to 16 kHz (adjustable)

Applications & compatibility

The Altivar 61HU55Y is suitable for a wide range of applications including pumps, fans, compressors, and material handling systems. Its robust design and flexible control options make it compatible with various industrial machinery found in sectors such as water treatment, HVAC, and general manufacturing.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV61HU55Y or contact our technical team for cross-reference assistance with compatible Altivar 61 components.
