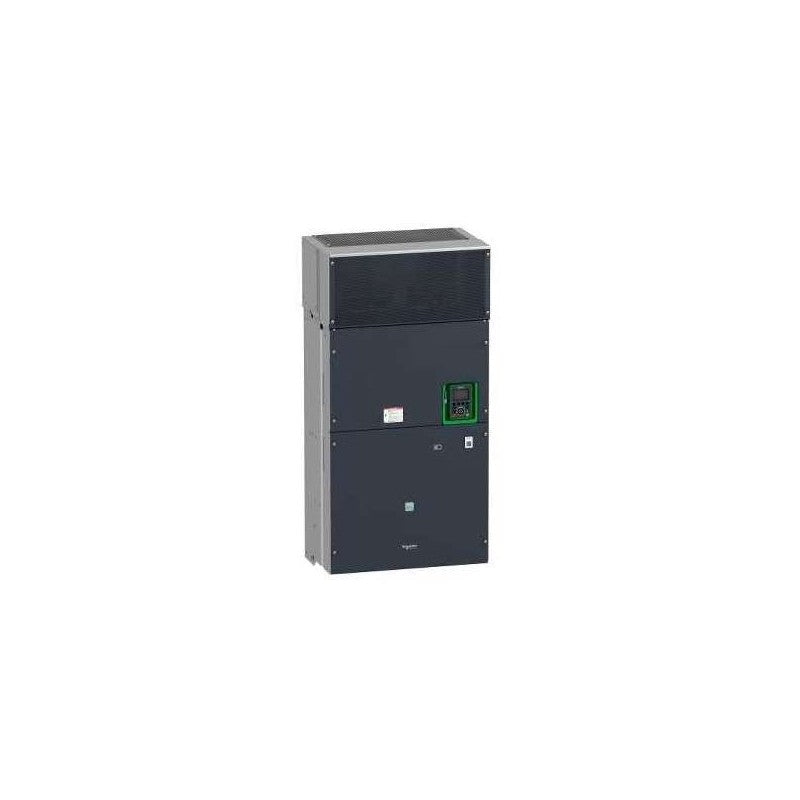

Schneider Electric's ATV630 series variable speed drive is engineered for demanding industrial applications. This specific unit, the ATV630C31N4, is designed to control motors up to 315kW (500hp) and operates within a voltage range of 380 to 480V. Its robust construction is suitable for environments where direct component protection is managed externally.

Technical details

• Series: Altivar Process ATV630
• Power Rating: 315 kW (500 hp)
• Input Voltage Range: 380 - 480 VAC
• Enclosure Type: IP00 (Chassis Mount)
• Control Method: Vector Control with EMC Filter
• Integrated Communication Options: Modbus RTU/TCP, Ethernet/IP, Profibus DP (requires optional module)
• Mounting Type: Chassis Mount
• Harmonic Distortion: Integrated harmonic filter for reduced distortion

Applications & compatibility

The ATV630C31N4 is ideal for variable torque applications such as pumps, fans, and compressors, commonly found in water treatment plants, HVAC systems, and general industrial machinery. Its ability to handle high power ratings makes it suitable for large-scale process control and heavy-duty motor management.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV630C31N4 or contact our technical team for cross-reference assistance with compatible Altivar Process components.
