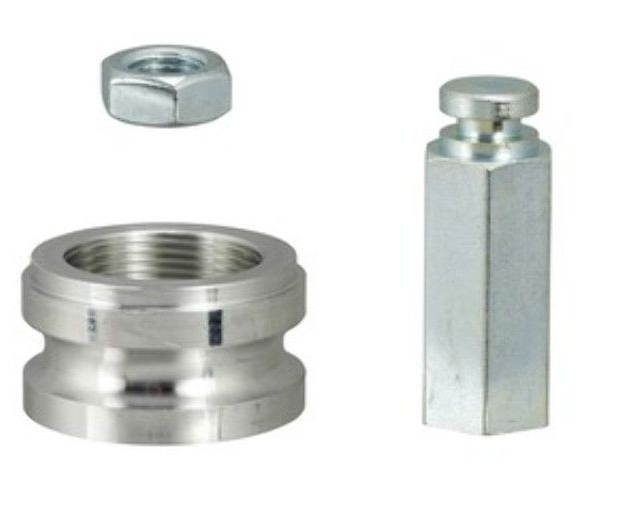

The AV-822 from Schneider Electric is an adapter kit designed for mounting VB-8XXX and VB-9XX series actuators. This U-bolt style adapter facilitates the connection of these actuators to globe valves ranging from 2-1/2 to 6 inches in size, ensuring proper mechanical linkage for valve operation.

Technical details

• Manufacturer Series: VB Actuator Mounting Accessories
• Actuator Compatibility: Designed for Schneider Electric VB-8XXX and VB-9XX series actuators.
• Valve Type Compatibility: Suitable for globe valves.
• Valve Size Range: Accommodates globe valves with sizes from 2-1/2 inches to 6 inches.
• Mounting Style: Features a U-bolt style mounting mechanism for secure attachment.
• Functionality: Provides the necessary mechanical interface to connect actuators to specific valve sizes.
• Material Construction: Typically constructed from durable materials suitable for industrial environments (verify with manufacturer datasheet for specific material).

Applications & compatibility

This adapter kit is essential for applications requiring the integration of Schneider Electric VB actuators with standard globe valves. It is commonly utilized in HVAC systems, building automation, and process control environments where precise valve positioning is critical. The AV-822 ensures compatibility with a defined range of valve sizes, simplifying installation and maintenance.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the AV-822 or contact our technical team for cross-reference assistance with compatible VB actuator components.
