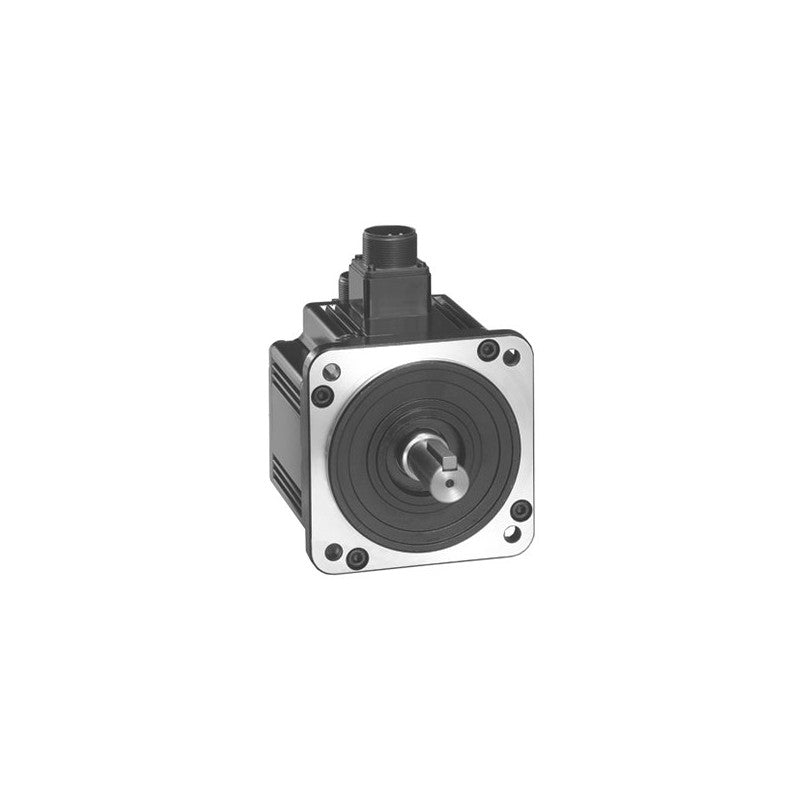

The Schneider Electric BCH1301M02F1C is a servo motor from the BCH series, designed for precise motion control applications. This specific model features a smooth shaft without an oil seal, indicating its suitability for environments where external sealing is not a primary concern or is handled by the machine design. It incorporates a 20-bit encoder for high-resolution position feedback and includes an integrated brake for holding torque when power is removed.

Technical details

• Series: BCH Servo Motor
• Encoder Resolution: 20-bit
• Shaft Type: Smooth (no oil seal)
• Brake Configuration: Integrated holding brake
• Connector Type: Straight connector
• Motor Type: AC Servo Motor
• Voltage Class: Typically designed for low-voltage AC servo drive systems (verify specific voltage requirements with manufacturer datasheet).
• Frame Size: Specific frame size information is not determinable from the provided part number and requires consultation of the manufacturer's datasheet.

Applications & compatibility

This BCH series servo motor is commonly employed in automated machinery requiring accurate and repeatable positioning. Applications include robotics, pick-and-place systems, packaging equipment, and CNC machining centers where precise motion control is critical. Its integrated brake provides safety and holding capabilities, making it suitable for vertical axis applications or where load inertia needs to be managed during power loss.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BCH1301M02F1C or contact our technical team for cross-reference assistance with compatible Schneider Electric servo drive components.
