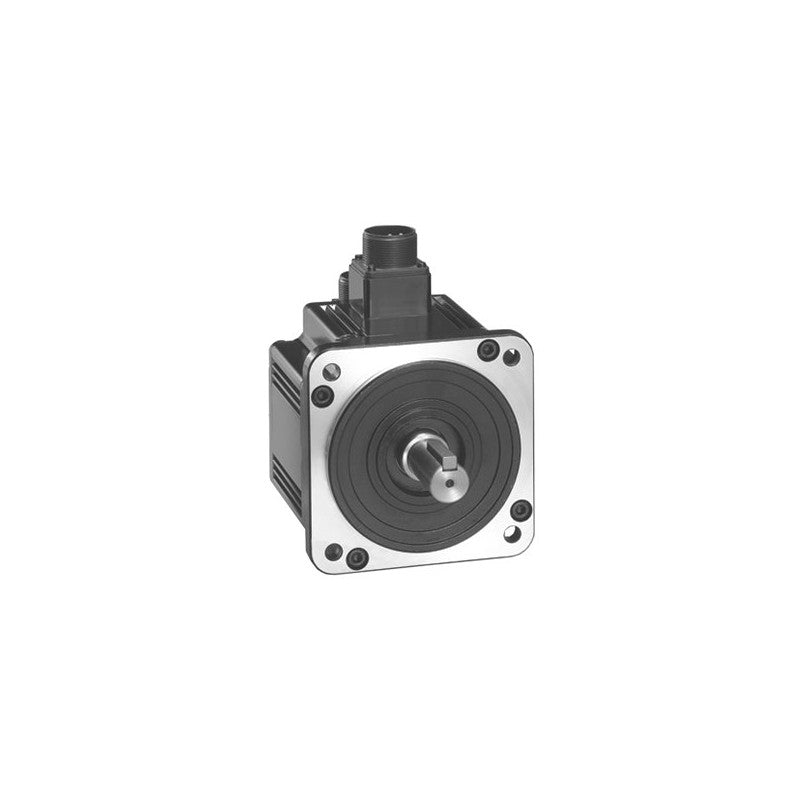

The Schneider Electric BCH1302N22F1C is a servo motor designed for demanding industrial automation tasks. As part of the BCH servo motor series, this unit incorporates a smooth shaft, a brake, and a straight connector, making it suitable for applications requiring precise motion control and holding torque. Its 20-bit encoder provides high-resolution feedback for accurate positioning.

Technical details

• Series: BCH Servo Motor
• Encoder Resolution: 20-bit
• Shaft Type: Smooth
• Brake: Integrated
• Connector Type: Straight
• Oil Seal: Included
• Voltage Class: To be confirmed via manufacturer datasheet. The part number does not explicitly define voltage class.
• Power Rating: To be confirmed via manufacturer datasheet. The part number does not explicitly define power rating.

Applications & compatibility

This servo motor is commonly employed in automated machinery such as packaging equipment, material handling systems, and robotics where precise and repeatable movements are critical. Its integrated brake ensures secure positioning when power is removed, making it ideal for vertical axis applications or systems requiring load holding capabilities. Compatibility with specific servo drives and controllers should be verified against the Schneider Electric documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BCH1302N22F1C or contact our technical team for cross-reference assistance with compatible BCH series components.
