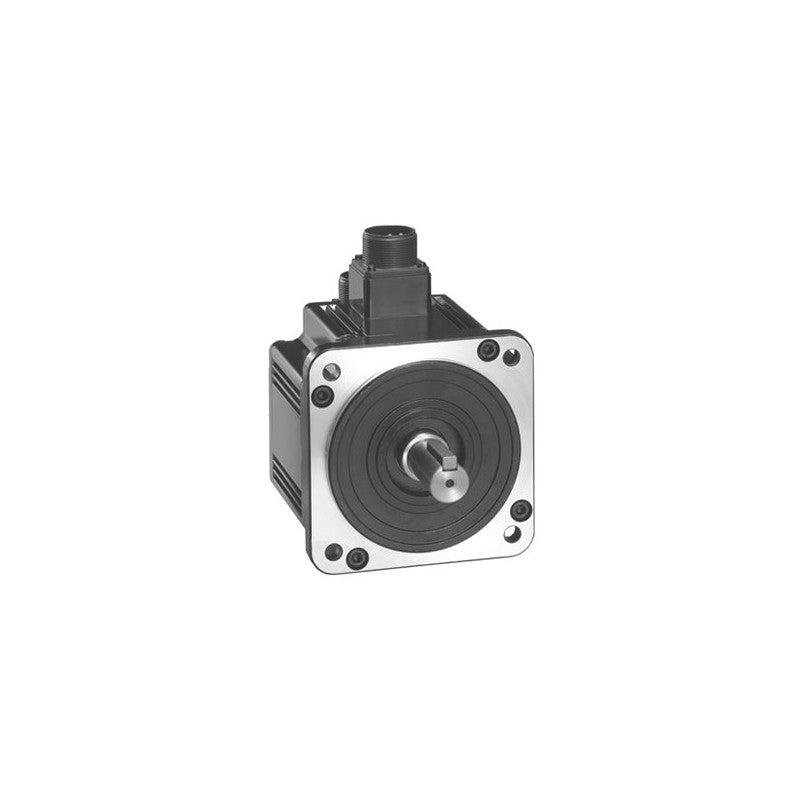

The Schneider Electric BCH servo motor series offers precise motion control for demanding industrial applications. This specific unit, identified by the part number BCH1303N22A1C, is configured for direct connection without an integrated brake and features a smooth shaft design. It incorporates a 20-bit encoder for high-resolution feedback, crucial for applications requiring accurate positioning and velocity control.

Technical details

• Series: BCH Servo Motor
• Shaft Type: Smooth shaft
• Encoder Resolution: 20-bit
• Brake Configuration: Without brake
• Connector Type: Straight connector
• Sealing: Equipped with an oil seal for enhanced protection against contaminants
• Voltage Class: Verify voltage class with manufacturer datasheet; part number does not explicitly define this.
• Power Rating: Verify power rating with manufacturer datasheet; part number does not explicitly define this.

Applications & compatibility

This BCH servo motor is designed for integration into automated systems requiring precise and dynamic motion control. It is commonly found in applications such as high-speed packaging machinery, CNC machining centers, robotic assembly lines, and automated material handling systems where accurate positioning and smooth operation are paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BCH1303N22A1C or contact our technical team for cross-reference assistance with compatible Schneider Electric servo drive components.
