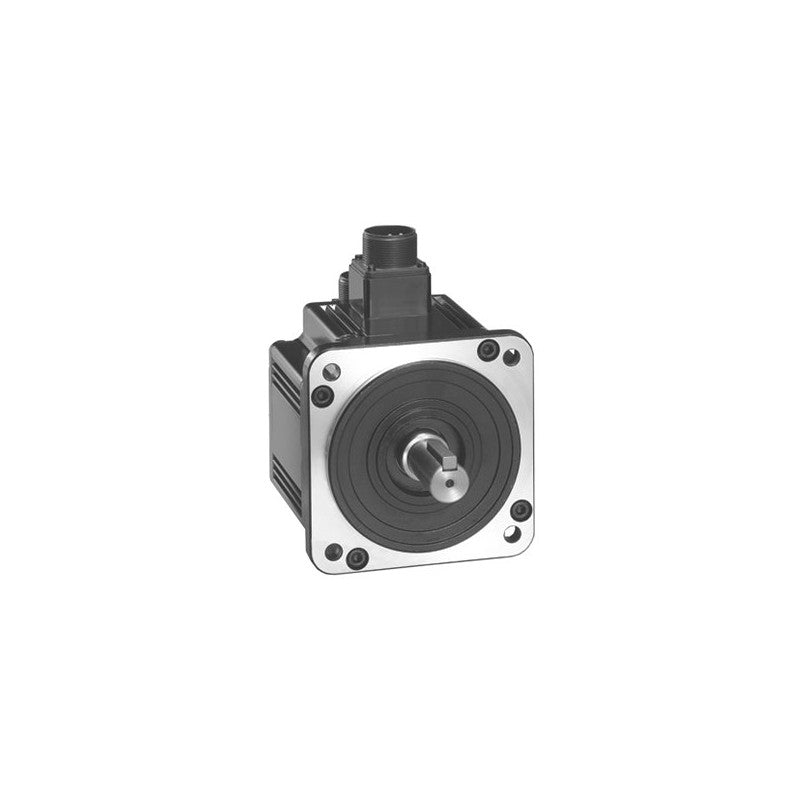

The Schneider Electric BCH servo motor series offers precise motion control for demanding industrial applications. This specific model, identified by the part number BCH1304N02F1C, is designed for integration into automation systems requiring high-resolution feedback and reliable braking capabilities. It features a smooth shaft design and a 20-bit encoder for accurate positioning.

Technical details

• Series: BCH Servo Motor
• Encoder Resolution: 20-bit
• Shaft Type: Smooth (no oil seal)
• Brake: Integrated
• Connector Type: Straight
• Voltage Class: Typically designed for 200-240V AC servo systems (verify with datasheet for exact rating)
• Motor Frame Size: Indicated by '130' in the part number, suggesting a specific frame diameter (verify with datasheet)
• Feedback Type: Incremental encoder with 20-bit resolution

Applications & compatibility

This servo motor is suitable for use in automated machinery such as CNC machines, packaging equipment, robotics, and material handling systems where precise speed and position control are critical. Its integrated brake provides holding torque for applications requiring static positioning or safety during power loss. Compatibility should be verified with the specific servo drive and controller used in the system.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BCH1304N02F1C or contact our technical team for cross-reference assistance with compatible Schneider Electric servo components.
