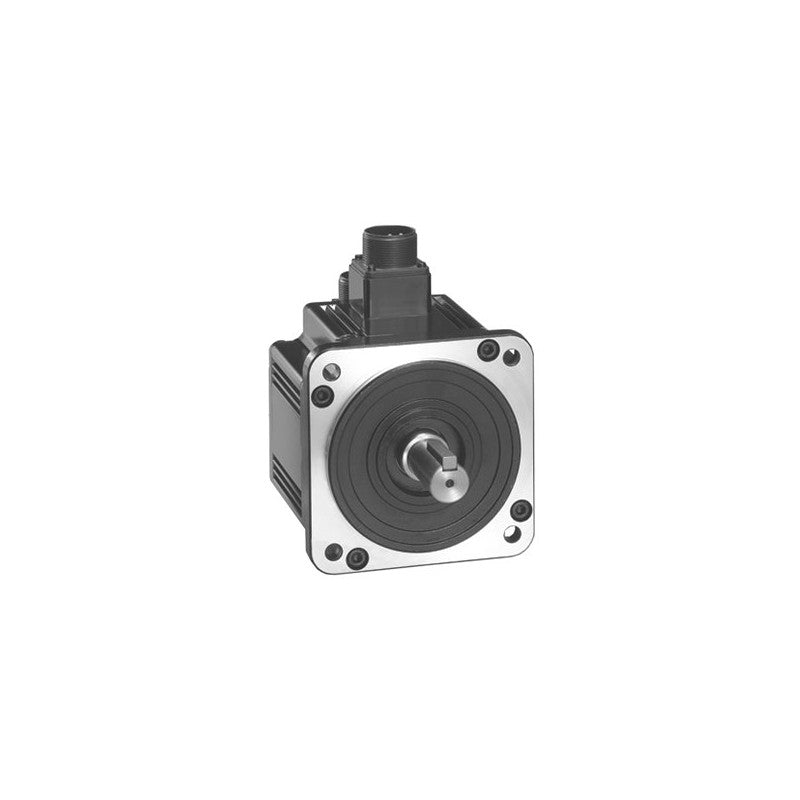

The Schneider Electric BCH servo motor series is engineered for precise motion control applications. This specific model, identified by the part number BCH1304N22F1C, features a smooth shaft design and incorporates a 20-bit encoder for high-resolution feedback. Its integrated brake provides holding torque when power is removed, enhancing safety and positional accuracy in demanding industrial environments.

Technical details

• Series: BCH Servo Motor
• Encoder Resolution: 20-bit
• Shaft Type: Smooth
• Brake: Integrated holding brake
• Connector Type: Straight connector
• Oil Seal: Equipped with an oil seal for enhanced protection
• Voltage Class: Typically designed for 200-230V class applications (verify with manufacturer datasheet for exact specifications)
• Motor Frame Size: Specific frame size information can be determined from the part number's encoding; consult manufacturer documentation for precise dimensions.

Applications & compatibility

This BCH servo motor is suitable for a wide range of automation tasks requiring accurate positioning and dynamic response. Common applications include robotics, automated assembly lines, packaging machinery, and CNC equipment where precise motor control is paramount. Its compatibility extends to various servo drives within the Schneider Electric ecosystem, facilitating integration into existing automation architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BCH1304N22F1C or contact our technical team for cross-reference assistance with compatible Schneider Electric servo components.
