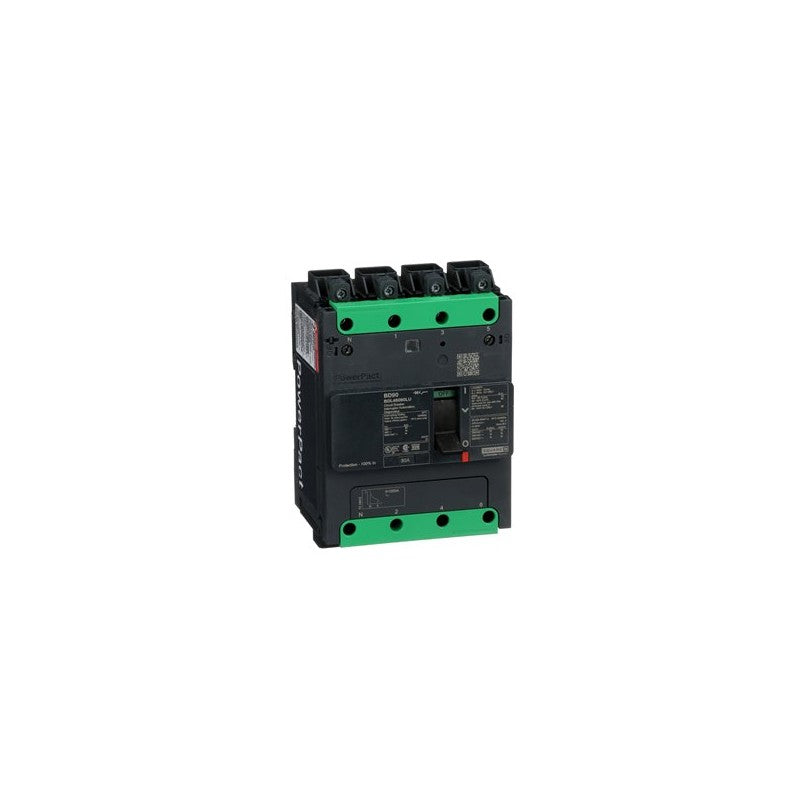

The Schneider Electric PowerPact B circuit breaker, model BDL46090LU, is a 4-pole device designed for robust power distribution and protection in industrial environments. This breaker is engineered to operate within a 600Y/347V AC system, providing reliable circuit interruption for demanding applications. Its construction supports a significant fault current rating, ensuring safety and operational continuity.

Technical details

• Series: PowerPact B
• Poles: 4
• Voltage Rating: 600Y/347V AC
• Interrupting Capacity: 14kA at 600Y/347V AC (UL)
• Amperage Rating: 90A
• Connection Technology: Everlink
• Control Wire Termination: ON end
• Frame Size: B (as indicated by part number prefix BDL)

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, branch circuit protection, and motor control applications within various industrial settings. It is commonly found in heavy machinery, manufacturing plants, and facility power distribution systems requiring reliable and high-capacity circuit protection. Compatibility with 600Y/347V AC systems ensures seamless integration into existing electrical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BDL46090LU or contact our technical team for cross-reference assistance with compatible PowerPact B components.
