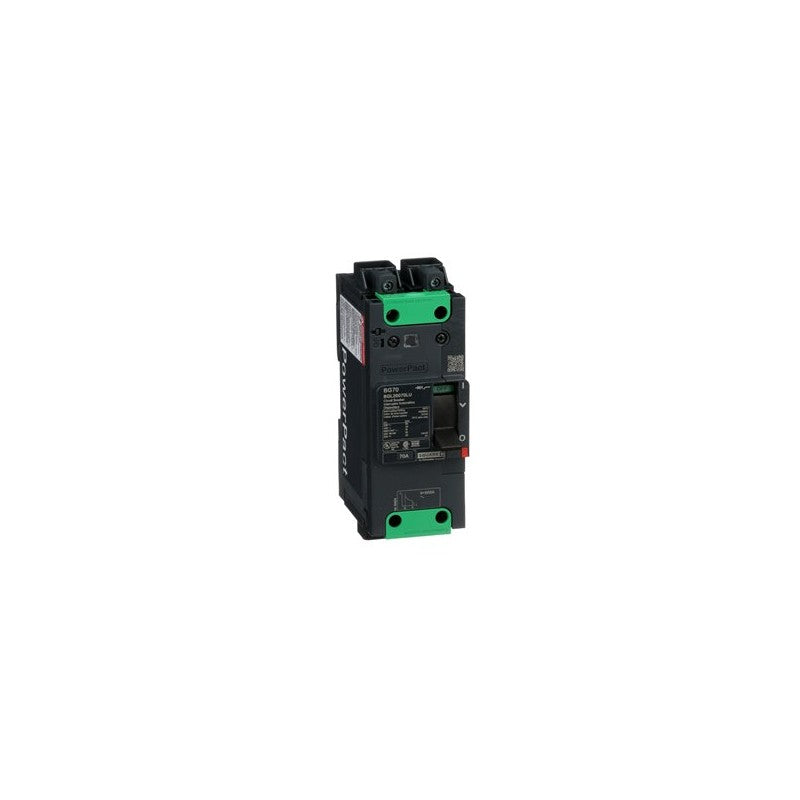

The Schneider Electric PowerPact B circuit breaker, model BGL26070LU, is a two-pole device designed for AC power distribution systems. This breaker is rated for 70 amps and operates at a voltage of 600Y/347V AC. It provides a significant interrupting capacity of 18kA at 600Y/347V UL, making it suitable for applications requiring robust protection against overcurrents and short circuits. The inclusion of Everlink technology ensures secure and reliable termination connections.

Technical details

• Series: PowerPact B
• Poles: 2
• Voltage Rating: 600Y/347V AC
• Current Rating: 70A
• Interrupting Capacity: 18kA at 600Y/347V UL
• Termination: Everlink, control wire ON end
• Frame Size: PowerPact B

Applications & compatibility

This circuit breaker is commonly employed in commercial and industrial electrical distribution panels, motor control centers, and power distribution units. Its specifications make it suitable for protecting circuits in applications such as HVAC systems, lighting circuits, and general power distribution within facilities like manufacturing plants, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BGL26070LU or contact our technical team for cross-reference assistance with compatible PowerPact components.
