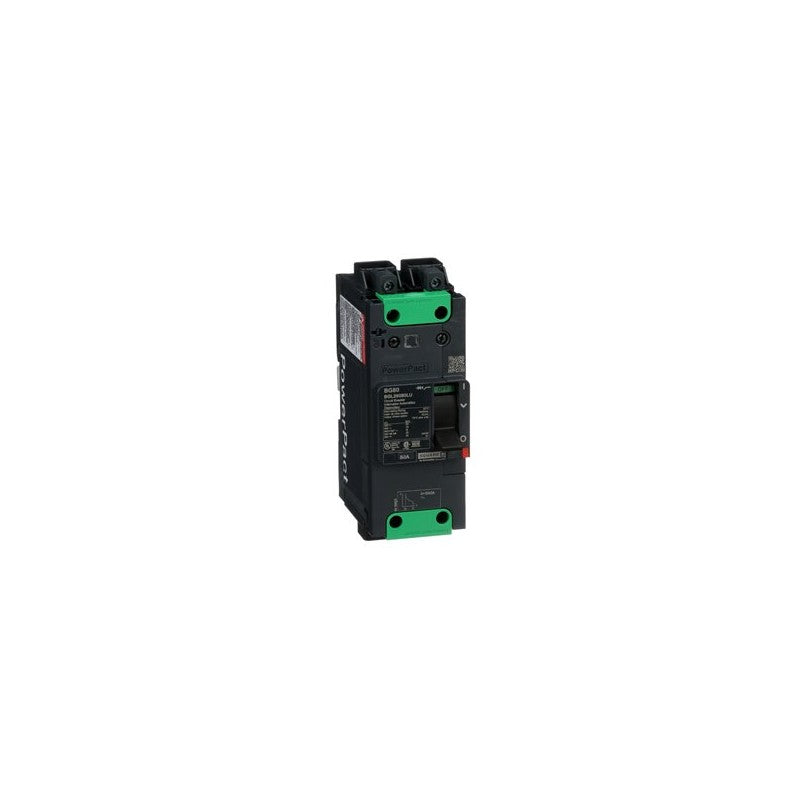

The Schneider Electric PowerPact B circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 2-pole breaker, identified by the BGL26080LU model, offers reliable performance for circuits operating at 600Y/347V AC. Its design incorporates Everlink technology for secure and stable connections, ensuring consistent operational integrity.

Technical details

• Series: PowerPact B
• Poles: 2
• Voltage Rating: 600Y/347V AC
• Current Rating: 80A
• Interrupting Capacity: 18kA at 600Y/347V AC (UL)
• Connection Type: Everlink
• Control Wire Termination: ON end
• Frame Size: B (as indicated by the "B" in the series name)

Applications & compatibility

This circuit breaker is suitable for use in a wide range of industrial power distribution systems, including motor control centers, panelboards, and switchgear. It is commonly found in applications requiring reliable overcurrent protection for circuits up to 80 amps, such as those powering machinery on assembly lines, HVAC systems, or process control equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BGL26080LU or contact our technical team for cross-reference assistance with compatible PowerPact components.
