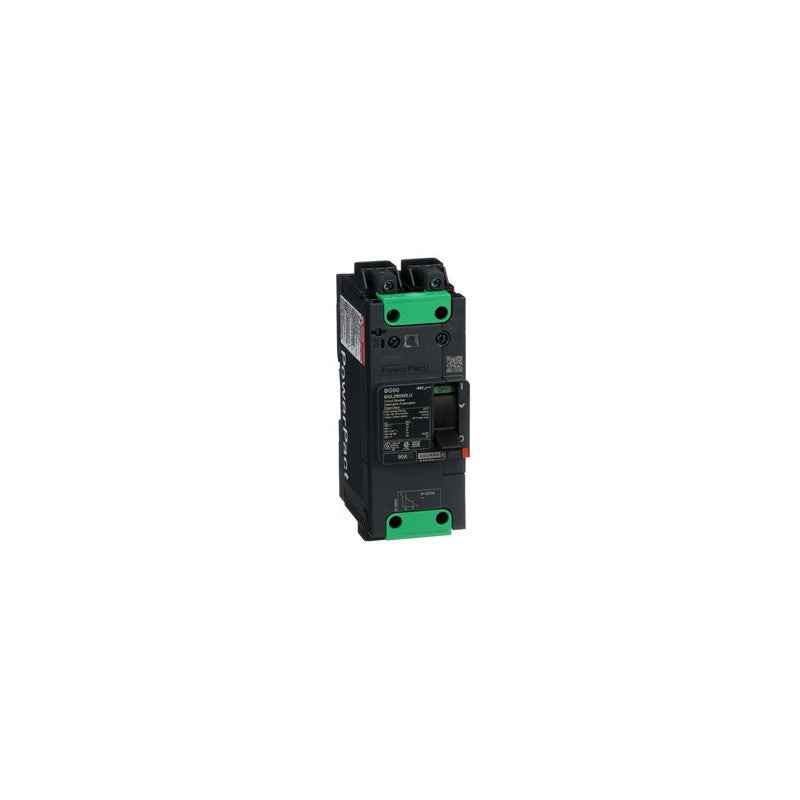

The Schneider Electric PowerPact B circuit breaker, model BGL26090LU, is a 2-pole device designed for AC power distribution systems. This breaker is rated for 90 amps and operates at a voltage of 600Y/347V AC. It features a robust construction suitable for demanding industrial environments and is part of the PowerPact B series, known for its reliability in protecting electrical circuits.

Technical details

• Series: PowerPact B
• Poles: 2
• Voltage Rating: 600Y/347V AC
• Current Rating: 90 Amperes
• Interrupting Rating: 18kA at 600Y/347V AC (UL)
• Connection Type: Everlink terminals with control wire ON end
• Frame Size: B (as indicated by the 'B' in the series name and part number)

Applications & compatibility

This circuit breaker is commonly utilized in commercial and industrial power distribution panels, motor control centers, and facility power systems. Its specifications make it suitable for protecting circuits in applications such as HVAC systems, lighting circuits, and general power distribution where a 600Y/347V AC system is employed.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BGL26090LU or contact our technical team for cross-reference assistance with compatible PowerPact B components.
