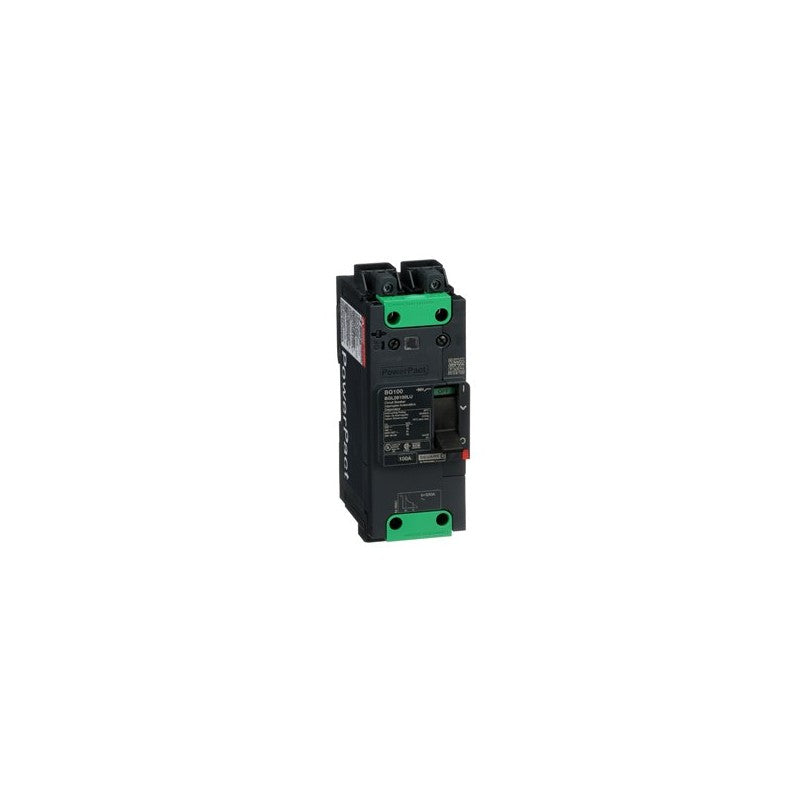

The Schneider Electric PowerPact B circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 100A, 2-pole breaker is designed for 600Y/347V AC systems, offering a significant interrupting rating of 18kA at 600Y/347V UL. Its construction includes Everlink technology for secure terminal connections and a control wire ON end configuration.

Technical details

• Series: PowerPact B
• Poles: 2
• Amperage Rating: 100A
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 18kA at 600Y/347V UL
• Terminal Type: Everlink
• Control Wire Configuration: ON end
• Frame Size: B (as indicated by the 'B' in the part number BGL26100LU)

Applications & compatibility

This circuit breaker is suitable for use in a wide range of electrical distribution systems, including motor control circuits, lighting panels, and general power distribution in commercial and industrial facilities. It is designed to protect circuits from overcurrents and short circuits, ensuring the safety and reliability of connected equipment such as HVAC systems, pumps, and machinery on production lines.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BGL26100LU or contact our technical team for cross-reference assistance with compatible PowerPact components.
