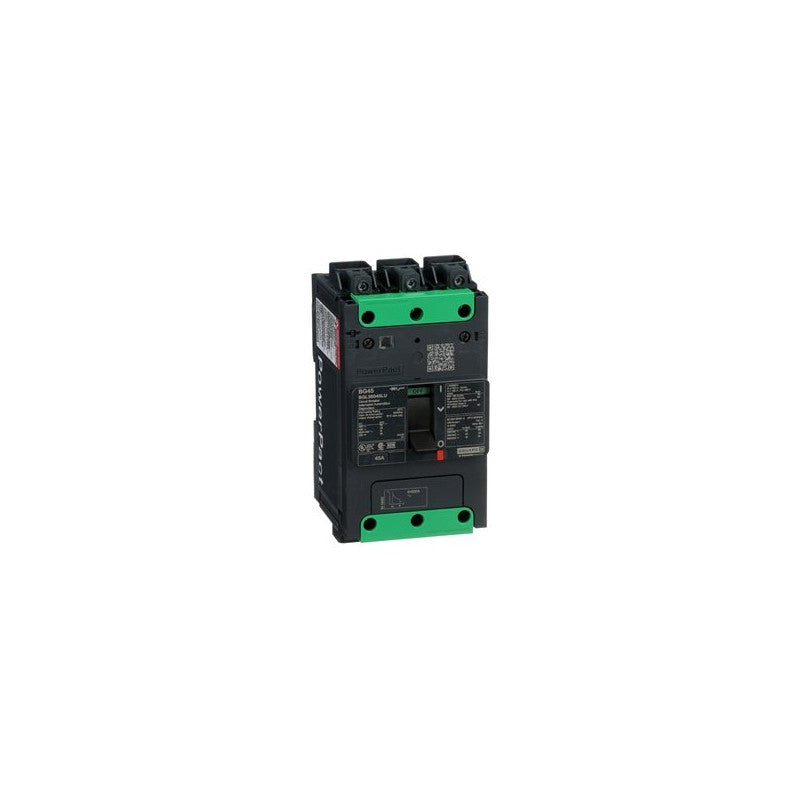

Part of the Schneider Electric PowerPact B series, this 3-pole circuit breaker is rated for 45A and operates at 600Y/347V AC. It features an interrupting rating of 18kA at 600Y/347V AC, meeting UL standards. The inclusion of Everlink technology and a control wire ON end designation indicates specific wiring and connection capabilities for integration into control systems.

Technical details

• Series: PowerPact B
• Number of Poles: 3
• Amperage Rating: 45A
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 18kA at 600Y/347V AC (UL)
• Connection Type: Everlink terminals
• Control Wire Configuration: ON end
• Frame Size: B (implied by series name)

Applications & compatibility

This circuit breaker is suitable for use in various industrial power distribution applications, including motor control circuits, branch circuit protection, and main disconnects within facilities. Its specifications make it compatible with systems requiring robust protection and reliable switching at the specified voltage and current levels.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BGL36045LU or contact our technical team for cross-reference assistance with compatible PowerPact B components.
