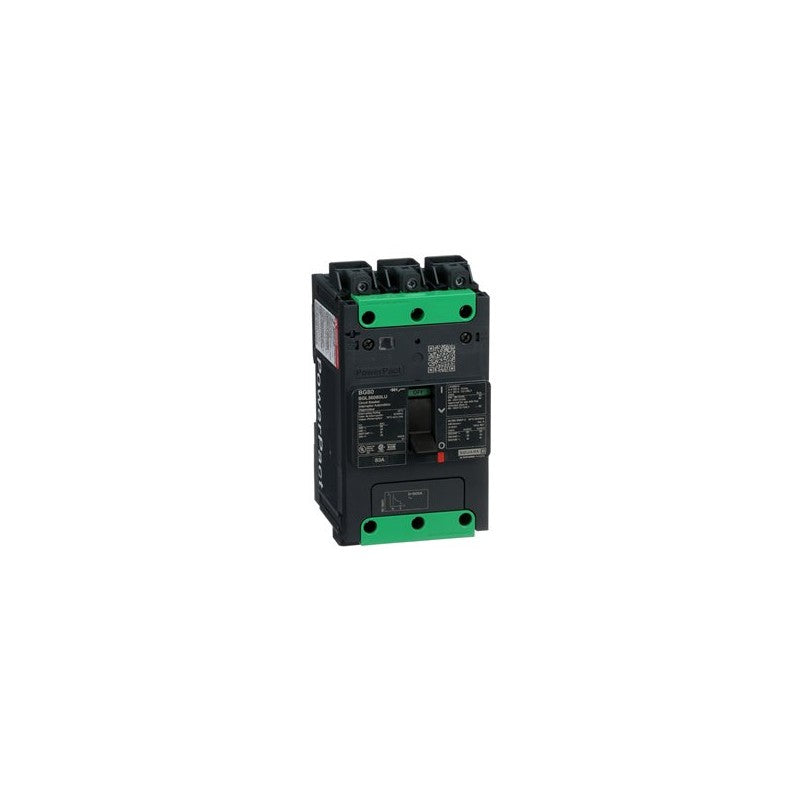

The Schneider Electric PowerPact B circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 3-pole breaker, part of the PowerPact B series, offers a significant interrupting rating suitable for 600Y/347V AC systems. Its design incorporates Everlink technology for secure and reliable connections, ensuring consistent performance in critical applications.

Technical details

• Series: PowerPact B
• Number of Poles: 3
• Voltage Rating: 600Y/347V AC
• Interrupting Rating: 18kA at 600Y/347V AC (UL)
• Amperage Rating: 80A
• Connection Type: Everlink, control wire ON end
• Frame Size: B (implied by series name)
• Terminal Type: Screw terminals with Everlink technology

Applications & compatibility

This circuit breaker is designed for use in power distribution systems within manufacturing facilities, processing plants, and commercial buildings. It is commonly found protecting circuits in motor control centers, panelboards, and switchgear for applications such as conveyor systems, HVAC units, and general power distribution where a 3-pole, 80A breaker at 600V is specified.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BGL36080LU or contact our technical team for cross-reference assistance with compatible PowerPact B components.
