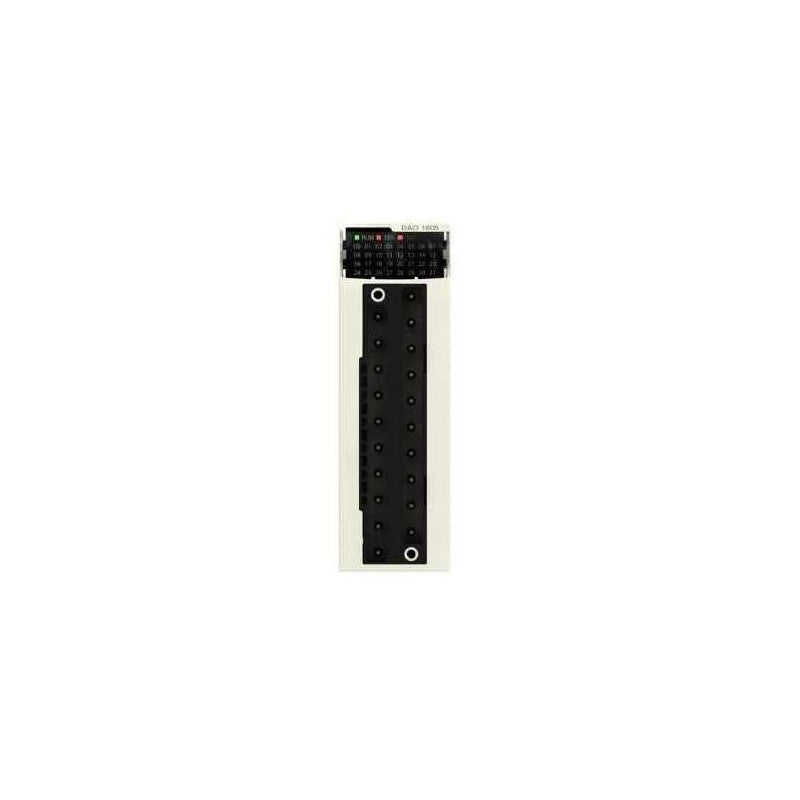

Part of the Schneider Electric M340 platform, the BMXDAO1605 is a discrete output module designed for high-voltage AC switching applications. This module provides 16 triac outputs, suitable for controlling AC loads within a 100 to 240 Volt AC range. It is commonly integrated into automation systems requiring reliable switching of inductive or resistive loads in demanding industrial environments.

Technical details

• Series: M340
• Output Type: Discrete Triac
• Number of Outputs: 16
• Output Voltage Rating: 100-240 V AC
• Switching Capacity: Triac outputs are suitable for switching AC loads. Specific current and power ratings per output should be verified against the manufacturer's datasheet.
• Module Form Factor: Designed for DIN rail mounting within M340 racks.
• Communication Protocol: Compatible with the Modicon M340 backplane communication.
• Isolation: Channel-to-logic isolation is standard for this type of module, enhancing system safety and reliability.

Applications & compatibility

The BMXDAO1605 is engineered for integration into Modicon M340 programmable logic controller systems. It is frequently deployed in applications such as controlling AC solenoid valves, pilot lights, small motor contactors, or heating elements on packaging machinery, material handling systems, and general manufacturing equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BMXDAO1605 or contact our technical team for cross-reference assistance with compatible M340 modules.
