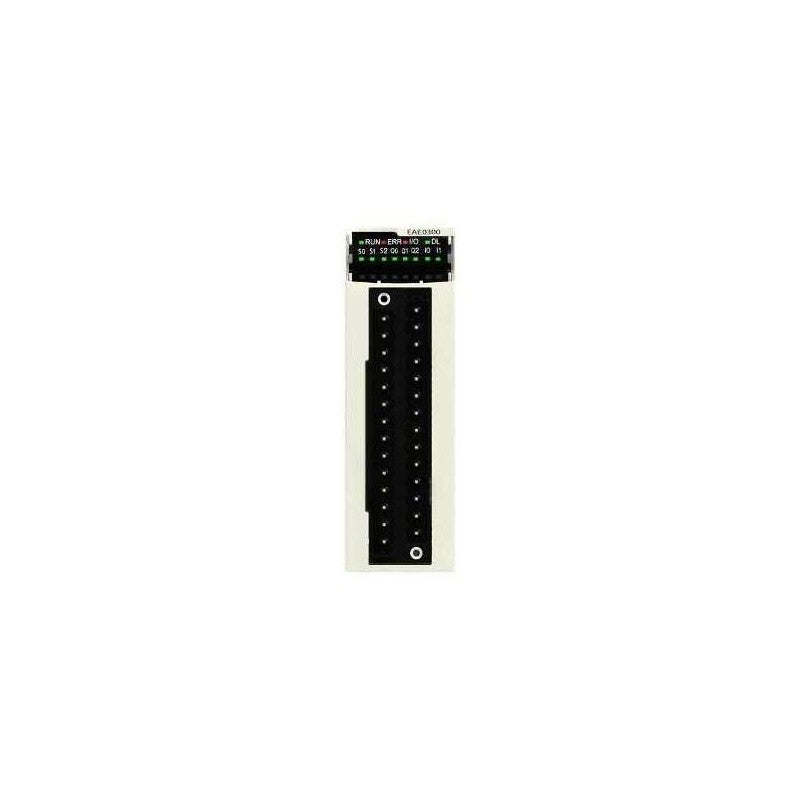

The Schneider Electric BMXEAE0300 serves as an SSI encoder interface module within the Modicon X80 series. This module is engineered to facilitate the integration of SSI (Synchronous Serial Interface) encoders into automation systems, providing a dedicated channel for high-resolution position feedback. It is commonly employed in applications requiring precise motion control and data acquisition from rotary or linear encoders.

Technical details

• Series: Modicon X80
• Product Type: SSI Encoder Interface Module
• Number of Channels: 3
• Data Bits per Channel: Up to 31
• Communication Speed: Up to 1 Mbaud
• Interface Protocol: Synchronous Serial Interface (SSI)
• Functionality: Enables direct connection and data acquisition from SSI encoders
• Module Type: I/O Module

Applications & compatibility

This SSI encoder interface module is designed for use in automation architectures that demand precise position feedback, such as those found in robotics, CNC machinery, automated assembly lines, and material handling systems. It ensures accurate data transfer from encoders to the PLC for closed-loop control and monitoring.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BMXEAE0300 or contact our technical team for cross-reference assistance with compatible Modicon X80 components.
