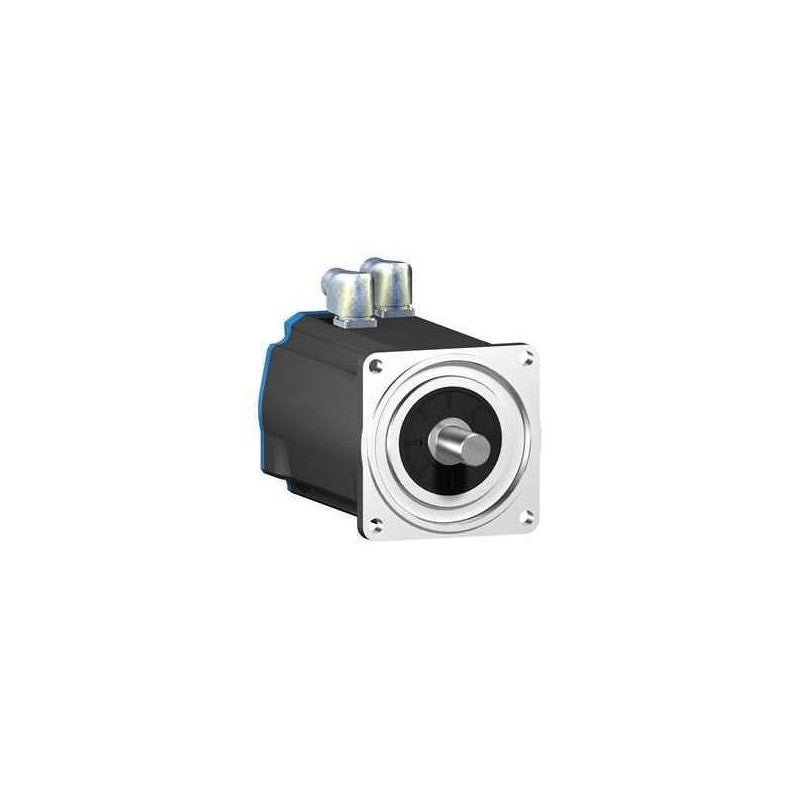

Part of the Schneider Electric Lexium SD3 series, this 3-phase DC stepper motor is engineered for precise motion control in demanding industrial environments. The BRS39AN560ABA features a single shaft end with a woodruff key, designed for secure coupling in applications requiring reliable torque transmission. Its robust construction and specific electrical characteristics make it suitable for integration into automated machinery and production lines.

Technical details

• Series: Lexium SD3
• Motor Type: 3-phase DC Stepper Motor
• Rated Current: 5A
• Nominal Torque: 4 Nm
• Input Voltage: 130 Vdc
• Shaft Type: Woodruff key, single shaft end
• Shaft Diameter: 9.5 mm
• Motor Length: 98 mm
• Centering Collar: 60 mm
• Flange Mounting: 85 x 85 mm
• Ingress Protection: IP41 / IP56
• Connections: Screw-clamp

Applications & compatibility

This stepper motor is commonly utilized in automated assembly machines, robotics, material handling systems, and precision positioning equipment. Its specifications are well-suited for applications demanding accurate and repeatable movements, such as those found in the automotive manufacturing, electronics assembly, and packaging industries. Ensure compatibility with your specific drive and control system by consulting the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BRS39AN560ABA or contact our technical team for cross-reference assistance with compatible Lexium SD3 components.
