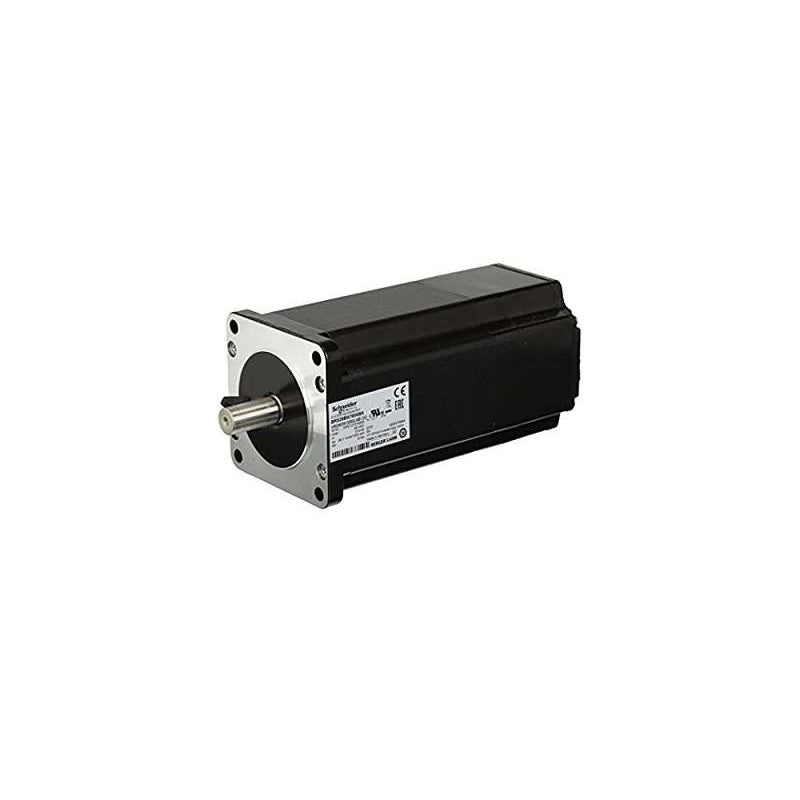

The Schneider Electric BRS39BN760ABA is a 3-phase DC stepper motor from the Lexium SD3 series, designed for precise motion control applications. This motor features a single shaft end with a woodruff key, suitable for direct coupling in various automation systems. Its robust construction and specified torque output make it a reliable component for demanding industrial environments.

Technical details

• Series: Lexium SD3
• Motor Type: 3-phase DC Stepper Motor
• Nominal Torque: 6 Nm
• Rated Current: 5 A
• Input Voltage: 130 Vdc
• Shaft Diameter: 14 mm
• Shaft Keying: Woodruff Key
• Motor Length: 128 mm
• Centering Collar Diameter: 60 mm
• Flange Mounting Pattern: 85 x 85 mm
• Ingress Protection: IP41 / IP56
• Connections: Screw-clamp

Applications & compatibility

This stepper motor is commonly integrated into automated machinery requiring precise positioning and controlled movement. Applications include CNC machining centers, automated assembly lines, packaging equipment, and robotics where consistent torque and accurate step control are critical. Its specifications suggest compatibility with Lexium SD3 drives and other motion control systems requiring similar voltage and current ratings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BRS39BN760ABA or contact our technical team for cross-reference assistance with compatible Lexium SD3 components.
