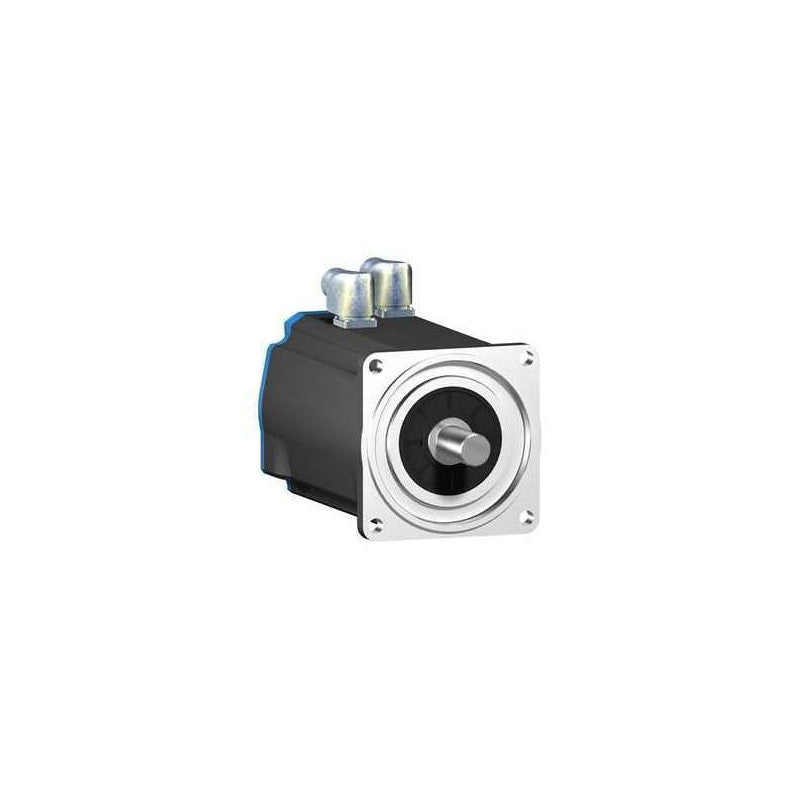

The Schneider Electric BSH1403P21A2A is an angled motor designed for demanding industrial environments. This component is part of the BSH series, commonly integrated into automated machinery requiring precise motor control and robust construction. Its IP65 rating indicates protection against dust ingress and low-pressure water jets, making it suitable for washdown or dusty applications.

Technical details

• Series: BSH
• Motor Type: Angled Motor
• Ingress Protection: IP65
• Voltage Class: The part number "140" suggests a 140V class motor. Verify specific voltage requirements with the manufacturer's datasheet.
• Frame Size/Mounting: The "3" in the part number may indicate a specific frame size or mounting configuration. Consult the datasheet for precise dimensions and mounting details.
• Shaft Configuration: The "P21" segment of the part number likely denotes specific shaft dimensions or features. Refer to the manufacturer's documentation for exact shaft specifications.
• Connection Type: The "A2A" suffix may indicate a specific electrical connection type or terminal configuration. Cross-reference with the datasheet for confirmation.
• Motor Technology: While not explicitly stated, BSH series motors are typically AC induction motors. Confirm the exact motor technology and performance characteristics via the official Schneider Electric documentation.

Applications & compatibility

This Schneider Electric motor is engineered for integration into a wide array of industrial automation systems. It is frequently found in applications such as robotic end-effectors, automated assembly lines, material handling equipment, and specialized machine tools where an angled motor configuration offers space-saving or functional advantages. Its IP65 rating ensures reliable operation in environments where exposure to dust or moisture is a concern.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BSH1403P21A2A or contact our technical team for cross-reference assistance with compatible BSH series components.
