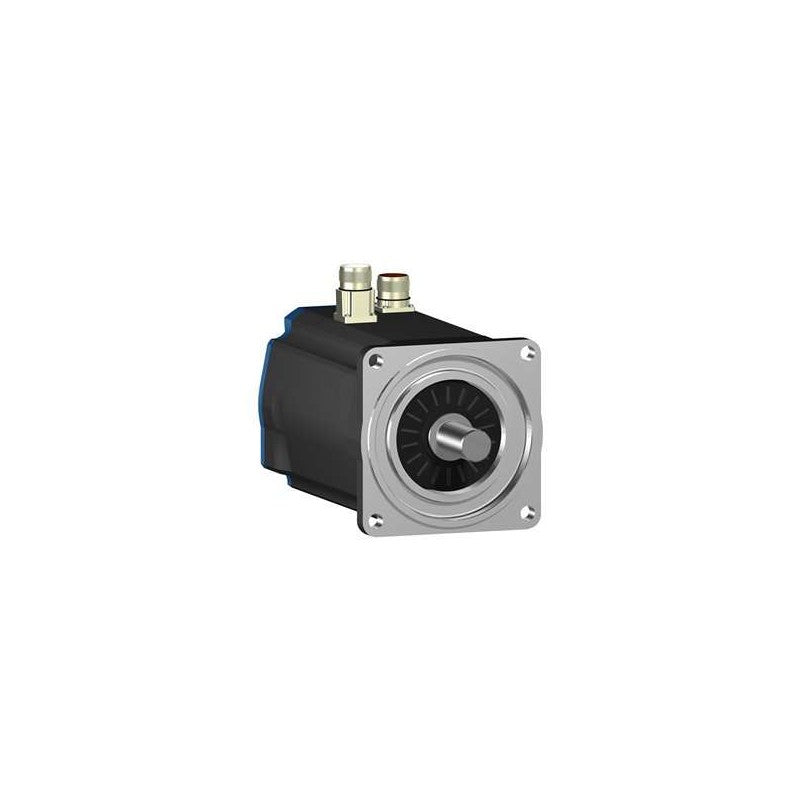

The Schneider Electric BSH1403T22F1P is an AC servo motor from the BSH series, engineered for demanding industrial applications requiring precise motion control. This motor delivers a robust 27.8 N.m of torque at a maximum speed of 3000 rpm, making it suitable for dynamic positioning tasks on automated machinery. Its design incorporates an integral brake for secure holding when power is removed, enhancing operational safety and system reliability.

Technical details

• Series: BSH AC Servo Motor
• Torque Rating: 27.8 N.m (nominal)
• Maximum Speed: 3000 rpm
• Shaft Type: Untapped shaft
• Brake: Integrated holding brake
• Ingress Protection Rating: IP65 (dust-tight and protected against water jets)
• Motor Type: AC Servo Motor
• Frame Size: The part number '1403' suggests a specific frame size or mounting configuration. For precise dimensions and mounting details, please consult the manufacturer's datasheet.

Applications & compatibility

This BSH series servo motor is commonly deployed in automated manufacturing environments, including high-speed packaging lines, CNC machining centers, robotic assembly cells, and precision material handling systems. Its IP65 rating ensures reliable operation in dusty or washdown environments, while the integrated brake provides critical holding functionality for vertical axis applications or during power interruptions.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the BSH1403T22F1P or contact our technical team for cross-reference assistance with compatible Schneider Electric servo drive systems.
