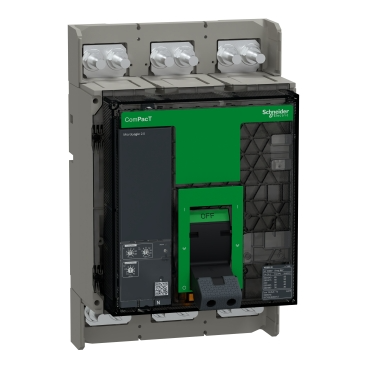

The Schneider Electric ComPacT NS800N is a 3-pole, fixed circuit breaker designed for robust power distribution and protection in industrial environments. This manually operated unit features a MicroLogic 2.0 control unit, providing essential protection functions for electrical systems. It is engineered to handle significant fault currents, making it suitable for applications requiring high levels of safety and reliability.

Technical details

• Series: ComPacT NS
• Model: NS800N
• Number of Poles: 3P
• Rated Current: 800A
• Breaking Capacity: 50kA at 415VAC
• Operation Type: Fixed, Manually Operated
• Control Unit: MicroLogic 2.0
• Voltage Rating: Up to 415VAC

Applications & compatibility

This circuit breaker is commonly deployed in main distribution panels, motor control centers, and as a protective device for large electrical loads. Its high breaking capacity makes it suitable for installations where short-circuit currents can be substantial, such as in manufacturing plants, data centers, and commercial buildings with significant power demands.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C080N320FM or contact our technical team for cross-reference assistance with compatible ComPacT NS components.
