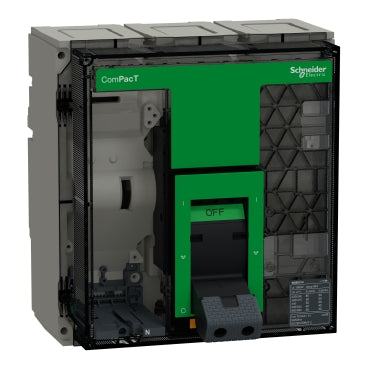

The Schneider Electric ComPacT NS800N switch base is engineered for robust circuit protection in demanding industrial environments. This manually actuated, fixed 3-pole unit is designed to support an 800A current rating and offers a significant interrupting capacity of 50 kA at 415 VAC. It serves as a foundational component for electrical distribution and motor control systems.

Technical details

• Series: ComPacT NS
• Model Designation: NS800N
• Configuration: 3-Pole (3P)
• Mounting Type: Fixed
• Actuation: Manual
• Rated Operational Current (Ie): 800A
• Rated Service Short-Circuit Breaking Capacity (Ics): 50 kA at 415 VAC
• Release Type: No Release (requires separate trip unit)

Applications & compatibility

This switch base is integral to Schneider Electric's ComPacT NS series of molded case circuit breakers, commonly deployed in power distribution panels, motor control centers, and main incoming feeders for manufacturing facilities. It is suitable for applications requiring reliable protection and isolation of electrical circuits in sectors such as food and beverage processing, water treatment, and general industrial machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C080N3FM or contact our technical team for cross-reference assistance with compatible ComPacT NS components.
