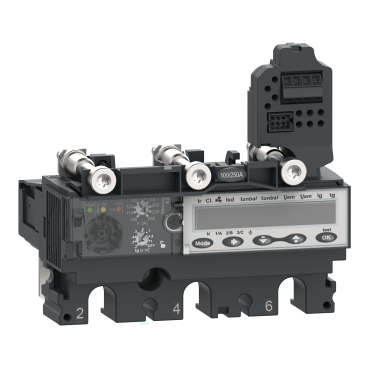

The Schneider Electric MicroLogic 6.2E trip unit is designed for advanced protection and monitoring within the ComPacT NSX100/160/250 circuit breaker series. This 3-pole unit integrates basic and differential current protection functionalities, along with an energy meter, making it suitable for critical power distribution applications. Its robust design ensures reliable operation in demanding industrial environments.

Technical details

• Series: MicroLogic 6.2E
• Compatible Circuit Breakers: ComPacT NSX100, NSX160, NSX250
• Number of Poles: 3
• Protection Functions: Basic and Differential Current Protection
• Integrated Metering: Energy Meter
• Current Rating: 100A
• Communication Capabilities: Supports advanced monitoring and control features (specific protocols to be verified against manufacturer datasheet)
• Trip Unit Type: Electronic

Applications & compatibility

This trip unit is commonly specified for use in electrical distribution panels, motor control centers, and power management systems within manufacturing facilities, data centers, and commercial buildings. Its compatibility with the ComPacT NSX range ensures seamless integration into existing Schneider Electric installations for enhanced safety and operational insight.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C1036E100 or contact our technical team for cross-reference assistance with compatible MicroLogic trip units.
