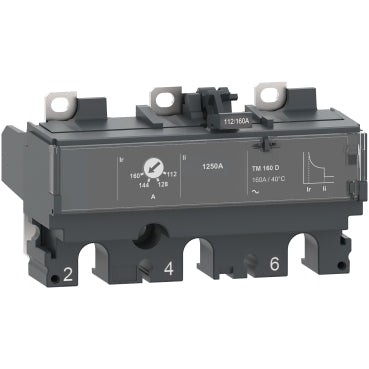

The Schneider Electric C103TM080 is a thermal magnetic trip unit designed for use with ComPacT NSX 100, 160, and 250 series circuit breakers. This trip unit provides essential overcurrent protection for electrical distribution systems. It is engineered to deliver reliable performance in demanding industrial environments.

Technical details

• Series: ComPacT NSX
• Trip Unit Type: TM80D Thermal Magnetic
• Current Rating: 80 A
• Number of Poles: 3
• Configuration: 3d (3 normally open, 3 normally closed auxiliary contacts)
• Protection Functions: Thermal overload and magnetic short-circuit protection
• Compatible Circuit Breaker Frames: ComPacT NSX 100, 160, 250
• Voltage Class: Not specified in provided information; verify against manufacturer datasheet for specific voltage ratings.

Applications & compatibility

This trip unit is integral to the protection schemes of ComPacT NSX circuit breakers, commonly found in motor control centers, power distribution panels, and machine tool applications. Its robust design ensures reliable operation in environments such as manufacturing plants, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C103TM080 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
