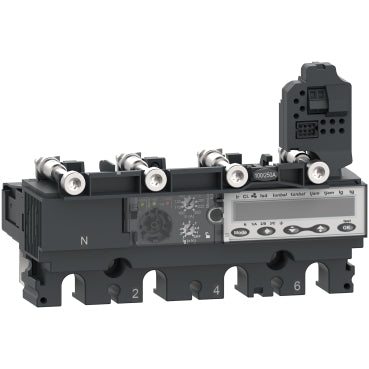

The Schneider Electric MicroLogic 6.2 E trip unit is designed for advanced protection and control within ComPacT NSX 100, 160, and 250 series circuit breakers. This electronic trip unit offers precise current sensing and fault detection capabilities, essential for safeguarding electrical distribution systems in demanding industrial environments. Its robust design ensures reliable operation and accurate tripping characteristics.

Technical details

• Trip Unit Series: MicroLogic 6.2 E
• Compatible Circuit Breaker Series: ComPacT NSX 100, ComPacT NSX 160, ComPacT NSX 250
• Type: Electronic Trip Unit
• Current Rating: 100 Amperes (A)
• Number of Poles: 4-pole (4d configuration)
• Protection Functions: Includes adjustable long-time, short-time, instantaneous, and ground-fault protection settings.
• Display: Integrated digital display for real-time current readings and fault diagnostics.
• Communication Capabilities: Supports Modbus communication protocol for remote monitoring and control.

Applications & compatibility

This MicroLogic 6.2 E trip unit is specifically engineered for use in Schneider Electric ComPacT NSX molded case circuit breakers, commonly found in main distribution panels, sub-distribution boards, and motor control centers. It is ideal for applications requiring precise overcurrent and ground-fault protection in commercial buildings, data centers, and various industrial facilities such as manufacturing plants and water treatment facilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C1046E100 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
