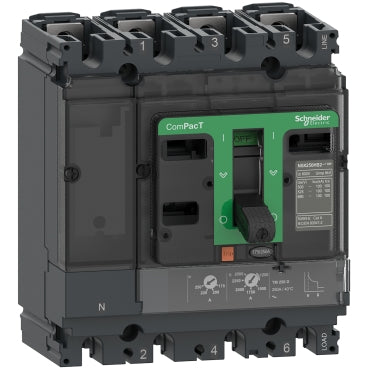

The Schneider Electric ComPacT NSX100B circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole breaker, part of the ComPacT NSX series, features a TMD trip unit rated for 63A and offers a breaking capacity of 25kA at 415VAC. Its design accommodates neutral protection configurations, with this specific model designated as 3D, indicating the neutral pole is not protected.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX100B
• Number of Poles: 4
• Neutral Pole Configuration: 3D (Neutral not protected)
• Trip Unit Type: TMD
• Trip Unit Rating: 63A
• Breaking Capacity: 25kA
• Voltage Rating: 415VAC

Applications & compatibility

This circuit breaker is suitable for use in a wide range of industrial power distribution systems, including motor control centers, switchboards, and power distribution panels. It provides essential overcurrent and short-circuit protection for machinery and equipment found in manufacturing facilities, processing plants, and building services.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10B6TM063 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
