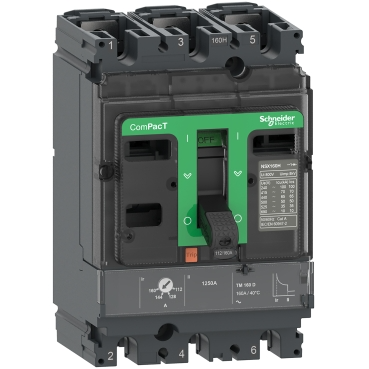

The Schneider Electric ComPacT NSX100F circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole unit features a 36kA interrupting capacity at 415VAC and is equipped with a TMD trip unit rated for 63A. Its design makes it suitable for integration into power distribution systems requiring reliable overcurrent and short-circuit protection.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX100F
• Number of Poles: 3
• Interrupting Capacity: 36kA at 415VAC
• Trip Unit Type: TMD (Thermal Magnetic Differential)
• Current Rating: 63A
• Voltage Rating: 415VAC
• Enclosure Type: Not specified; refer to manufacturer datasheet for details.

Applications & compatibility

This circuit breaker is commonly deployed in motor control centers, power distribution panels, and machine control cabinets across various industries. It is designed to protect electrical circuits and equipment in applications such as manufacturing lines, material handling systems, and process control automation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10F3TM063 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
