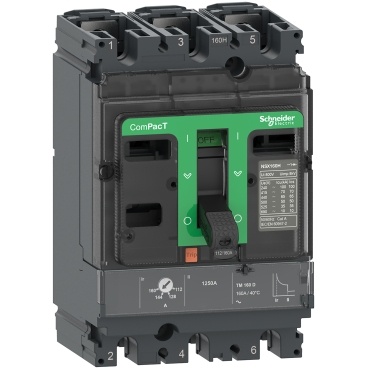

The Schneider Electric ComPacT NSX100F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 3-pole breaker, part of the ComPacT NSX series, features a 36kA interrupting capacity at 415VAC, ensuring safety and reliability for critical power distribution systems. Its integrated TMD trip unit is factory-set to 100A, providing precise overcurrent and short-circuit protection.

Technical details

• Series: ComPacT NSX100F
• Number of Poles: 3
• Rated Operational Voltage: 415VAC
• Interrupting Capacity: 36kA at 415VAC
• Trip Unit Type: TMD (Thermal Magnetic Drawout)
• Rated Current (TMD): 100A
• Configuration: 3d (3 poles, 3 disconnects)
• Mounting Type: Drawout (for easy replacement and maintenance)

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, motor control centers, and sub-distribution boards across various industries. It is commonly found in applications such as manufacturing plants, data centers, and commercial buildings where reliable power protection is paramount. The ComPacT NSX series is designed for compatibility with a wide range of Schneider Electric switchgear and control systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10F3TM100 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
