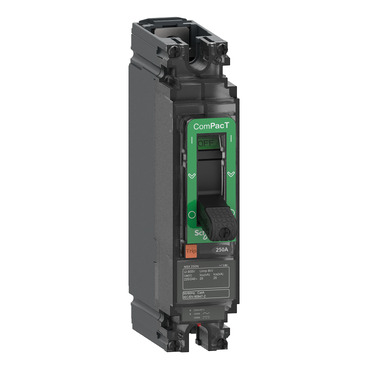

The Schneider Electric ComPacT NSX100M is a 1-pole circuit breaker designed for AC and DC applications. This unit features a 40kA interrupting capacity at 240VAC and is equipped with a TMD trip unit rated for 100A. It is commonly integrated into power distribution systems and motor protection circuits within industrial facilities.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX100M
• Number of Poles: 1
• Interrupting Capacity: 40kA at 240VAC
• Trip Unit Type: TMD
• Current Rating: 100A
• Voltage Compatibility: AC/DC
• Enclosure Type: Molded Case Circuit Breaker (MCCB)

Applications & compatibility

This circuit breaker is suitable for use in electrical distribution panels, motor control centers, and as a protective device for individual loads in manufacturing environments. It is designed to protect electrical circuits against overloads and short circuits in applications such as conveyor systems, pump controls, and general machinery protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10M1TM100 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
