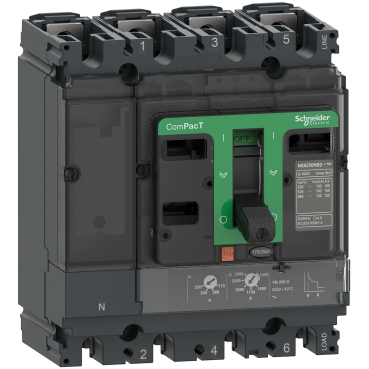

The Schneider Electric ComPacT NSX100N is a molded case circuit breaker designed for robust electrical protection in industrial environments. This 4-pole unit features a 16A rating and a breaking capacity of 50kA at 415VAC, making it suitable for demanding power distribution applications. Its ComPacT NSX series designation indicates a compact and reliable design for space-constrained installations.

Technical details

• Series: ComPacT NSX
• Model: NSX100N
• Number of Poles: 4
• Rated Current: 16A
• Breaking Capacity: 50kA at 415VAC
• Trip Unit Type: TMD
• Configuration: 4d (likely refers to the number of modules or poles in a specific configuration)
• Voltage Rating: Up to 415VAC

Applications & compatibility

This circuit breaker is commonly employed in main distribution panels, sub-distribution boards, and motor control centers across various industries. It provides essential overcurrent and short-circuit protection for electrical circuits in manufacturing plants, data centers, and commercial buildings, ensuring the safety and reliability of power systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10N4TM016 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
