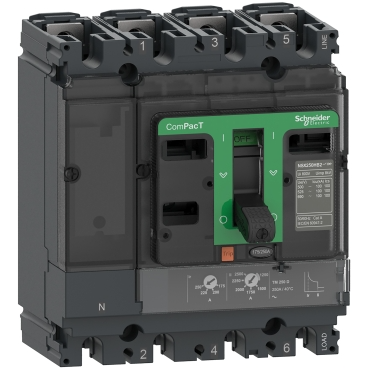

The Schneider Electric ComPacT NSX100N is a 4-pole molded case circuit breaker designed for robust electrical protection in industrial environments. This unit features a 50kA interrupting capacity at 415VAC, ensuring safety against short circuits. It incorporates a TMD trip unit with a 40A rating, providing adjustable thermal and magnetic protection for connected equipment.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX100N
• Number of Poles: 4 (4D configuration, indicating neutral fully protected)
• Rated Operational Voltage: 415VAC
• Interrupting Capacity: 50kA at 415VAC
• Trip Unit Type: TMD (Thermal Magnetic Differential)
• Trip Unit Rating: 40A
• Neutral Protection: Fully protected

Applications & compatibility

This circuit breaker is suitable for use in power distribution systems, motor control circuits, and as a main disconnect in various industrial machinery. It is commonly found in applications such as packaging lines, material handling systems, and general industrial power distribution panels where reliable overcurrent protection is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10N4TM040 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
