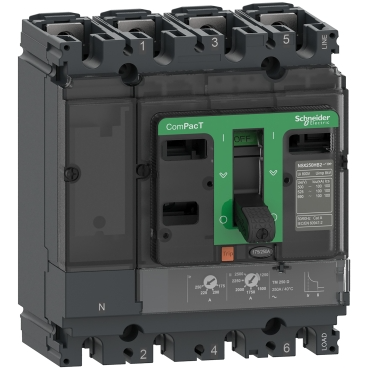

The Schneider Electric ComPacT NSX100N is a molded case circuit breaker designed for robust electrical protection in industrial environments. This 4-pole unit features a TMD trip unit rated for 100A and offers a breaking capacity of 50kA at 415VAC. It is commonly integrated into power distribution panels and motor control centers within manufacturing facilities.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX100N
• Number of Poles: 4
• Neutral Protection: Neutral not protected (3D configuration)
• Trip Unit Type: TMD (Thermal Magnetic Differential)
• Rated Current: 100A
• Breaking Capacity: 50kA at 415VAC
• Voltage Rating: 415VAC

Applications & compatibility

This circuit breaker is suitable for protecting electrical circuits in a variety of industrial applications, including motor control, power distribution, and branch circuit protection. It is compatible with systems requiring reliable overcurrent and short-circuit protection, commonly found in packaging machinery, conveyor systems, and general industrial power distribution networks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10N6TM100 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
