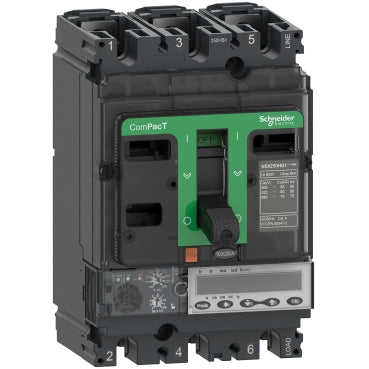

The Schneider Electric ComPacT NSX100R circuit breaker is engineered for robust electrical protection in demanding industrial environments. This unit, part of the ComPacT NSX series, features a high interrupting capacity of 200 kA at 415 VAC, ensuring safety and operational continuity. It is equipped with the MicroLogic 6.2 E electronic trip unit, providing advanced protection and control capabilities for 100 Amp circuits.

Technical details

• Series: ComPacT NSX
• Model: NSX100R
• Rated Current: 100 A
• Number of Poles: 3
• Interrupting Capacity: 200 kA at 415 VAC
• Trip Unit: MicroLogic 6.2 E
• Configuration: 3d (3-pole, double break)
• Voltage Rating: Up to 415 VAC

Applications & compatibility

This circuit breaker is suitable for use in power distribution systems, motor control centers, and as a main or branch circuit breaker in various industrial settings. Its high interrupting rating makes it ideal for applications where fault currents are significant, such as in manufacturing plants, data centers, and heavy industry facilities. The MicroLogic 6.2 E trip unit offers customizable protection settings for diverse load types.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10R36E100 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
