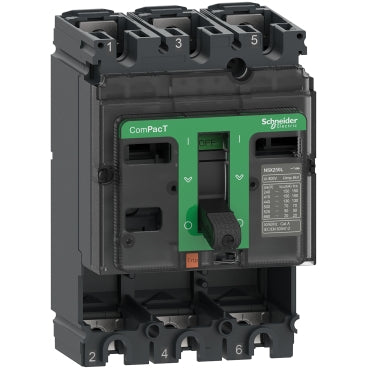

The Schneider Electric ComPacT NSX100S is a basic circuit breaker frame designed for robust electrical protection in demanding industrial environments. This 3-pole frame is engineered to accommodate a 100 Ampere rating and offers a significant interrupting capacity of 100 kA at 415 VAC, 50/60 Hz. It serves as a foundational component for building custom circuit breaker assemblies, requiring the addition of a specific trip unit to define its protective characteristics.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX100S
• Number of Poles: 3
• Rated Current: 100 A
• Interrupting Capacity: 100 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Configuration: Basic frame, requires separate trip unit
• Voltage Class: 415 VAC

Applications & compatibility

This ComPacT NSX100S basic frame is suitable for use in main distribution panels, motor control centers, and sub-distribution boards across various industries. It is commonly integrated into systems requiring reliable overcurrent and short-circuit protection for circuits feeding machinery such as pumps, fans, conveyors, and processing equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10S3 Schneider Electric or contact our technical team for cross-reference assistance with compatible ComPacT NSX trip units and accessories.
