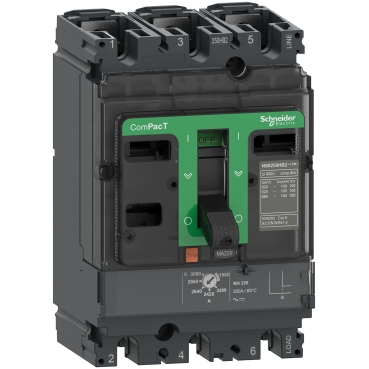

Schneider Electric's ComPacT NSX100HB1 circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole breaker, part of the ComPacT NSX series, offers a significant interrupting capacity of 75kA at 690VAC, making it suitable for high-fault current applications. Its integrated MA trip unit provides adjustable thermal and magnetic protection, ensuring reliable circuit isolation.

Technical details

• Series: ComPacT NSX
• Model: NSX100HB1
• Poles: 3
• Voltage Rating: 690VAC
• Interrupting Capacity: 75kA
• Trip Unit Type: MA (Magnetic-Thermal Adjustable)
• Adjustable Trip Unit Current Rating: 12.5A
• Enclosure Type: Typically housed in a robust frame for panel mounting; consult datasheet for exact dimensions.

Applications & compatibility

This circuit breaker is commonly deployed in power distribution systems for manufacturing plants, data centers, and commercial buildings. It is designed to protect electrical circuits in motor control centers, switchboards, and power distribution panels, ensuring the safety and reliability of machinery and electrical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10V3MA013 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
