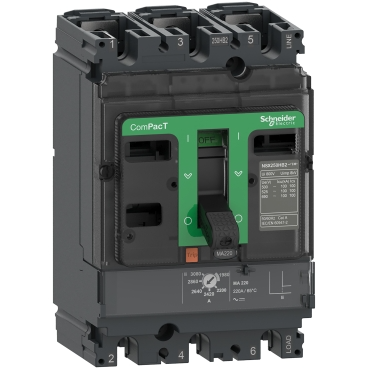

The Schneider Electric ComPacT NSX100HB1 circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole breaker, part of the ComPacT NSX series, features an MA trip unit rated for 100A and offers a significant interrupting capacity of 75kA at 690VAC. It is designed for use in power distribution systems where reliable fault current limitation is critical.

Technical details

• Series: ComPacT NSX
• Model: NSX100HB1
• Number of Poles: 3
• Trip Unit Type: MA
• Current Rating: 100A
• Interrupting Capacity: 75kA at 690VAC
• Voltage Rating: Up to 690VAC
• Terminal Type: Screw terminals (verify specific configuration against datasheet)

Applications & compatibility

This circuit breaker is suitable for use in motor control centers, power distribution panels, and machinery requiring high fault current withstand capabilities. It is commonly found in applications such as manufacturing plants, data centers, and infrastructure projects where reliable circuit protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C10V3MA100 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
