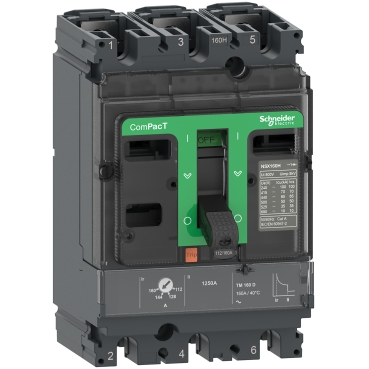

The Schneider Electric ComPacT NSX160B circuit breaker is designed for robust electrical protection in industrial environments. This 3-pole molded case circuit breaker features a TMD trip unit rated for 160 Amperes and offers a breaking capacity of 25kA at 415VAC. It is a key component for safeguarding electrical distribution systems and machinery from overcurrent and short-circuit faults.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX160B
• Number of Poles: 3
• Rated Current: 160 A
• Trip Unit Type: TMD (Thermal Magnetic Differential)
• Breaking Capacity: 25 kA at 415 VAC
• Voltage Rating: 415 VAC
• Mounting Type: Fixed, panel mount (verify mounting details against manufacturer datasheet)

Applications & compatibility

This circuit breaker is commonly integrated into motor control centers, power distribution panels, and machine control cabinets across various industries. It is suitable for protecting circuits in applications such as conveyor systems, pump controls, HVAC units, and general industrial machinery where reliable overcurrent protection is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C16B3TM160 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
