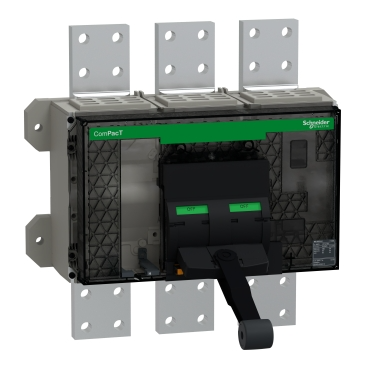

The Schneider Electric ComPacT NS1600bH circuit breaker frame is designed for robust power distribution and protection in demanding industrial environments. This fixed, manually operated frame is part of the ComPacT series, engineered to provide reliable circuit interruption for high-fault current scenarios. It serves as a foundational component for electrical systems requiring substantial current handling capabilities.

Technical details

• Series: ComPacT NS1600bH
• Configuration: 3-pole (3P)
• Interrupting Capacity: 70kA at 415VAC
• Rated Current: 1600A
• Operation Type: Fixed, manually operated
• Control Unit: Supplied without a control unit; requires separate integration.
• Mounting: Fixed installation type.
• Frame Size: Suitable for 1600A applications.

Applications & compatibility

This circuit breaker frame is commonly utilized in main distribution panels, motor control centers, and large industrial power systems. Its high interrupting rating makes it suitable for applications where significant short-circuit currents are anticipated, such as in manufacturing plants, data centers, and utility substations. Ensure compatibility with appropriate Schneider Electric ComPacT accessories and control units for full functionality.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C16BH3FM or contact our technical team for cross-reference assistance with compatible ComPacT components.
