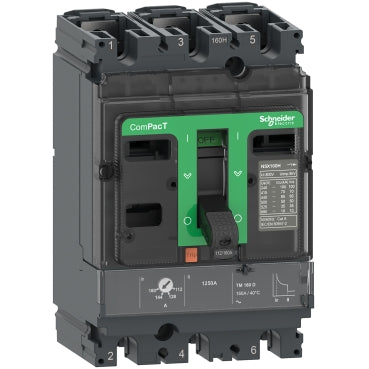

The Schneider Electric ComPacT NSX160F circuit breaker is designed for robust electrical protection in industrial environments. This 3-pole breaker, part of the ComPacT NSX series, features a 100A TMD trip unit and a breaking capacity of 36kA at 415VAC. It is commonly integrated into power distribution panels and motor control centers for safeguarding equipment against overcurrent and short-circuit faults.

Technical details

• Series: ComPacT NSX160F
• Poles: 3
• Rated Current: 100A (TMD trip unit)
• Breaking Capacity: 36kA at 415VAC
• Trip Unit Type: Thermal Magnetic Drawout (TMD)
• Voltage Rating: 415VAC
• Enclosure Type: Not specified; refer to manufacturer datasheet for details.
• Mounting Type: Not specified; refer to manufacturer datasheet for details.

Applications & compatibility

This circuit breaker is suitable for use in a wide range of industrial applications, including motor protection, feeder protection, and main incoming protection. It is compatible with various Schneider Electric ComPacT NSX system components and can be found in control panels for manufacturing equipment, material handling systems, and process automation machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C16F3TM100 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
