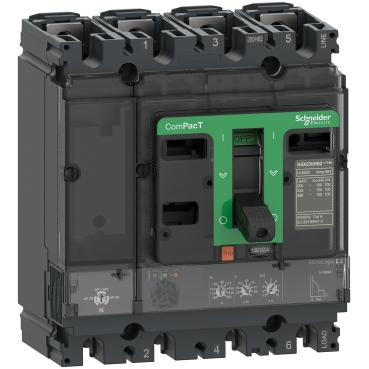

The Schneider Electric ComPacT NSX160F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole unit, identified by the part number C16F42D160, integrates the MicroLogic 2.2 trip unit for precise current monitoring and fault interruption. It is designed to safeguard electrical circuits against overloads and short circuits, ensuring operational continuity and equipment safety.

Technical details

• Series: ComPacT NSX160F
• Number of Poles: 4
• Interrupting Capacity: 36kA at 415VAC
• Rated Current: 160A
• Trip Unit: MicroLogic 2.2
• Voltage Class: Suitable for 415VAC systems. For specific voltage compatibility, consult the manufacturer's datasheet.
• Type: Molded Case Circuit Breaker (MCCB)

Applications & compatibility

This circuit breaker is commonly deployed in power distribution panels, motor control centers, and electrical switchgear for applications such as manufacturing plants, data centers, and commercial buildings. Its high interrupting rating makes it suitable for systems with significant fault current potential, protecting downstream equipment in packaging lines, material handling systems, and process control applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C16F42D160 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
