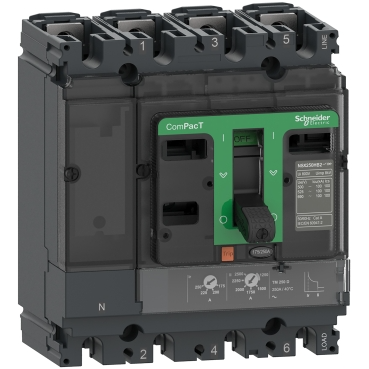

The Schneider Electric ComPacT NSX160F is a 4-pole molded case circuit breaker designed for robust electrical protection in industrial environments. This unit features a TMD trip unit rated for 80A and offers a breaking capacity of 36kA at 415VAC, making it suitable for applications requiring significant fault current interruption. Its ComPacT NSX platform ensures reliable performance and safety in demanding operational settings.

Technical details

• Series: ComPacT NSX160F
• Number of Poles: 4
• Trip Unit Type: TMD
• Current Rating: 80A
• Breaking Capacity: 36kA at 415VAC
• Voltage Rating: 415VAC
• Configuration: 3d (refer to manufacturer datasheet for specific meaning of '3d')
• Frame Size: 160A

Applications & compatibility

This circuit breaker is commonly deployed in power distribution panels, motor control centers, and electrical switchgear for protecting circuits in manufacturing plants, data centers, and commercial buildings. It is designed to integrate seamlessly into systems requiring reliable overcurrent and short-circuit protection for loads up to 160A.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C16F6TM080 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
