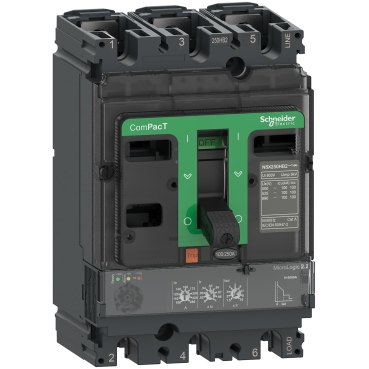

The Schneider Electric ComPacT NSX160H is a 3-pole molded case circuit breaker designed for robust electrical protection in industrial environments. This unit features a 160A MicroLogic 2.2 trip unit and offers a significant breaking capacity of 70kA at 415VAC, making it suitable for demanding power distribution applications.

Technical details

• Series: ComPacT NSX
• Model: NSX160H
• Number of Poles: 3
• Trip Unit: MicroLogic 2.2
• Rated Current (Trip Unit): 160A
• Rated Voltage: 415VAC
• Short-Circuit Breaking Capacity: 70kA at 415VAC
• Configuration: 3d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is commonly employed in power distribution panels, motor control centers, and main incoming feeders for industrial facilities. Its high breaking capacity ensures reliable protection for equipment in applications such as manufacturing plants, data centers, and large commercial buildings where fault currents can be substantial.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C16H32D160 Schneider Electric or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
