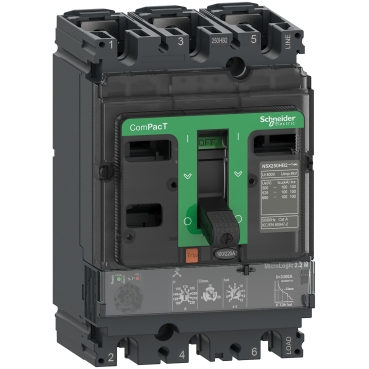

The Schneider Electric ComPacT NSX160H circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole unit, part of the ComPacT NSX series, features a MicroLogic 2.2M electronic trip unit and offers a significant interrupting capacity of 70kA at 415VAC. It is designed to safeguard electrical circuits against overloads and short circuits, ensuring operational continuity and equipment safety in applications requiring high fault current withstand.

Technical details

• Series: ComPacT NSX
• Model: NSX160H
• Poles: 3
• Voltage Rating: 415VAC
• Interrupting Capacity: 70kA @ 415VAC
• Trip Unit: MicroLogic 2.2M
• Current Rating: 150A
• Protection Functions: Overload and short-circuit protection

Applications & compatibility

This circuit breaker is suitable for use in motor control centers, power distribution panels, and main incoming feeders for various industrial machinery. It is commonly found in applications such as manufacturing plants, water treatment facilities, and large commercial buildings where reliable and high-capacity circuit protection is essential. The MicroLogic 2.2M trip unit provides adjustable settings for enhanced system customization.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C16H32M150 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
