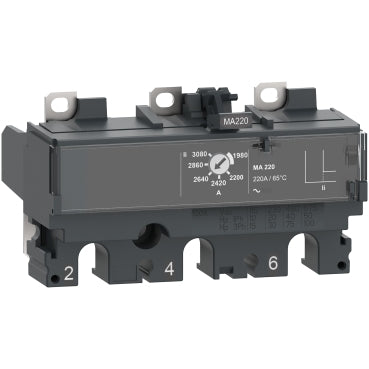

The Schneider Electric C253MA220 is a magnetic trip unit designed for ComPacT NSX 250 circuit breakers. This MA220 series unit provides essential overcurrent protection for three-pole electrical systems. Its specific rating makes it suitable for applications requiring precise current interruption at 220 Amperes.

Technical details

• Series: ComPacT NSX
• Trip Unit Type: MA220 Magnetic
• Current Rating: 220 A
• Number of Poles: 3
• Configuration: 3d (referring to the number of protected poles)
• Compatible Circuit Breaker Series: ComPacT NSX 250
• Protection Function: Magnetic trip for instantaneous overcurrent protection

Applications & compatibility

This trip unit is integral to the protection scheme of ComPacT NSX 250 circuit breakers, commonly found in industrial power distribution panels, motor control centers, and machinery requiring robust circuit protection. It ensures reliable operation and safety in environments such as manufacturing plants, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C253MA220 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
